Fresh-air Duct Installation Note

  1. Install the fresh-air duct as shown in the figure.

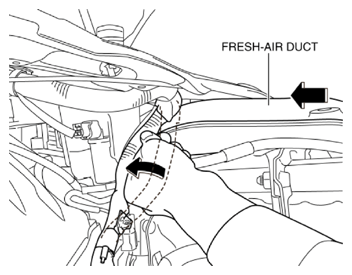

    Fig 1: Installing Fresh-Air Duct
    G10951686Courtesy of MAZDA MOTORS CORP.
  2. Connect the harness clip as shown in the figure.

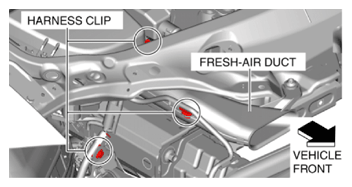

    Fig 2: Identifying Fresh-Air Duct And Harness Clips
    G10951687Courtesy of MAZDA MOTORS CORP.
  3. Install the following parts:
    1. Front combination light (RH) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    2. Front bumper slider (RH) (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
    3. Front bumper (See FRONT BUMPER INSTALLATION .)
