Passenger Compartment Temperature Sensor Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    6. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    7. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the screw.

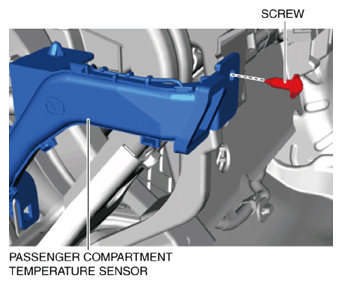

    Fig 1: Removing Screw
    G10948519Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the aspirator from the passenger compartment temperature sensor.

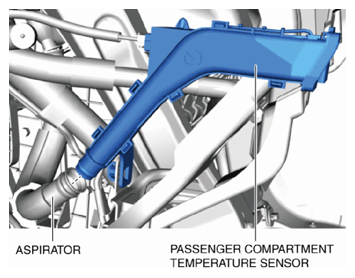

    Fig 2: Disconnecting Aspirator From Passenger Compartment Temperature Sensor
    G10948520Courtesy of MAZDA MOTORS CORP.
  5. Remove the passenger compartment temperature sensor.

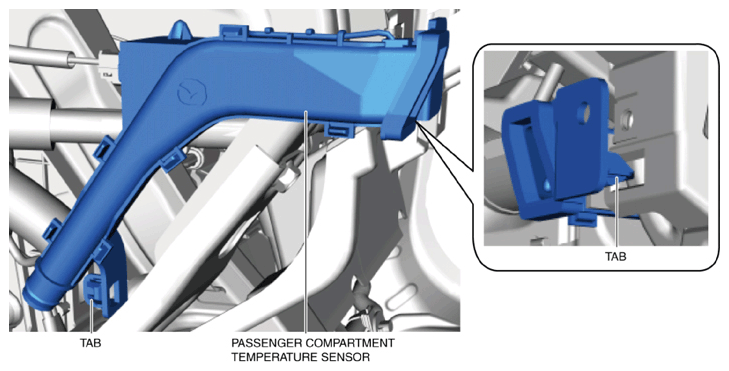

    Fig 3: Removing Passenger Compartment Temperature Sensor
    G10948521Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector.

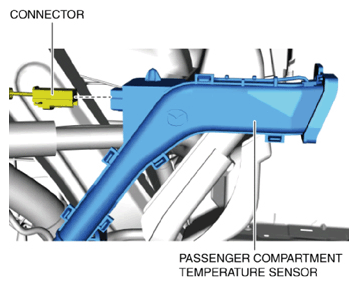

    Fig 4: Disconnecting Connector
    G10948522Courtesy of MAZDA MOTORS CORP.
  7. Remove the aspirator.

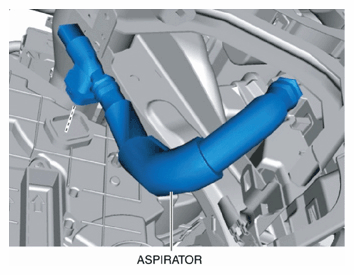

    Fig 5: Removing Aspirator
    G10948523Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
