Air Intake Actuator Installation: Notes

Install the air intake actuator.

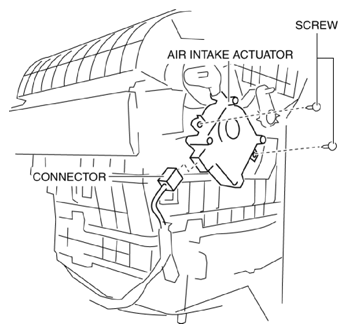

Fig 1: Installing Air Intake Actuator
Courtesy of MAZDA MOTORS CORP.
Install the screws.
Connect the connector.
Align the air intake link installation shaft with the shape of the air intake actuator hole, and install the air intake link. (Refer to AIR INTAKE LINK INSTALLATION NOTE )

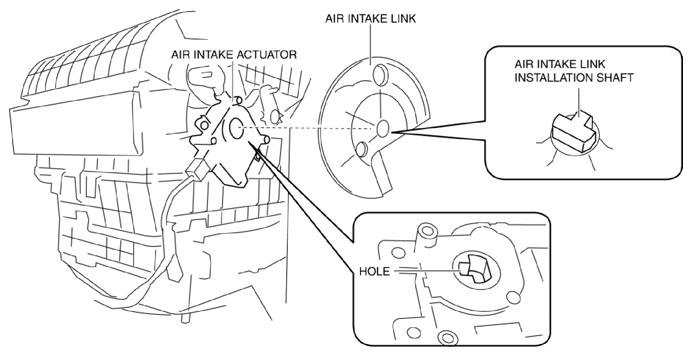

Fig 2: Aligning Air Intake Link Installation Shaft With Shape Of Air Intake Actuator Hole
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
2. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
3. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
4. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
5. Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
6. Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
7. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
8. Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
9. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
10. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
12. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
13. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
