Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

NOTE:

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

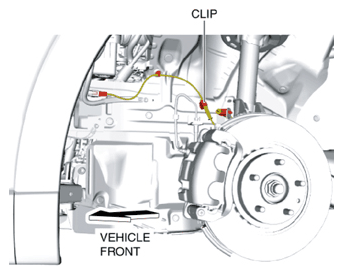

Fig 1: Identifying Front ABS Wheel-Speed Sensor Wiring Harness Clips

Courtesy of MAZDA MOTORS CORP.

1. Insert a flathead screwdriver from the side where there is no notch as shown in the figure.

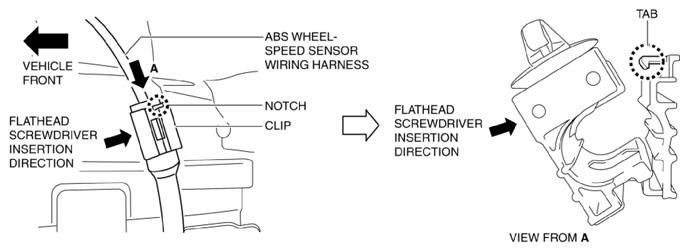

   Fig 2: Inserting Flathead Screwdriver From Side Of Notch

   Courtesy of MAZDA MOTORS CORP.
2. Detach the tab as shown in the figure and disconnect the ABS wheel-speed sensor wiring harness and clip.
