| Possible Causes |
- Power window subswitch malfunction
- Power window motor malfunction

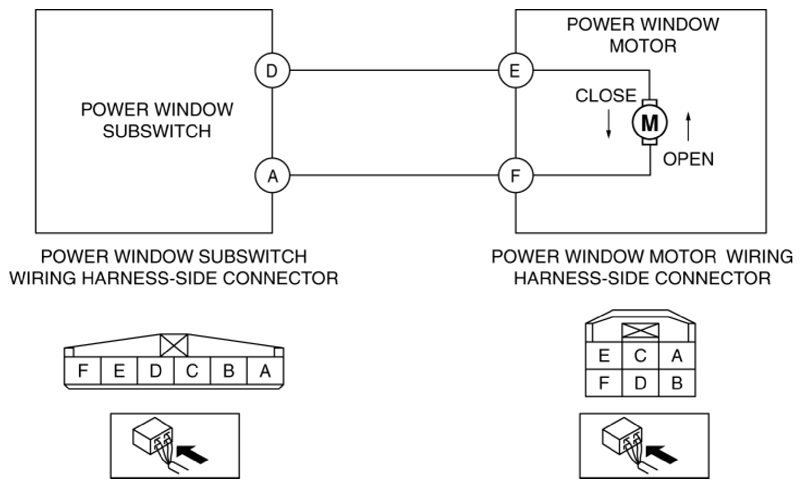

- Short to ground in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
- Open circuit in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
- Connector poor contact or terminal damage
|
