Troubleshooting Procedure

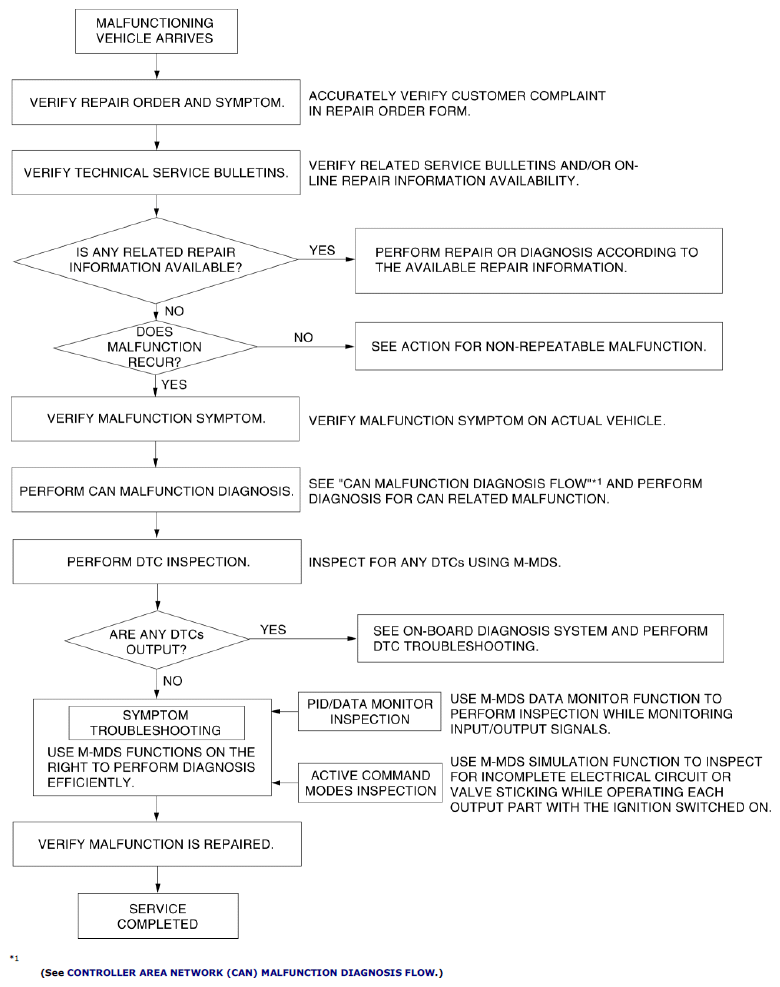

Fig 1: Blind Spot Monitoring Control Module Troubleshooting Chart

G10951015

Courtesy of MAZDA MOTORS CORP.
