Inspection Using an Oscilloscope (Reference)

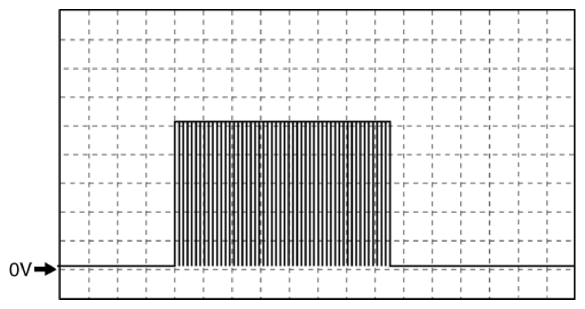

Fig 1: LF Control Unit Oscilloscope Graph

Courtesy of MAZDA MOTORS CORP.

• LF control unit: H (+) ↔ body ground (-)
• Oscilloscope setting: 2 V/DIV (Y), 100 ms/DIV (X), DC range
