Assembly of Wiring Harness to Wire Clip Note

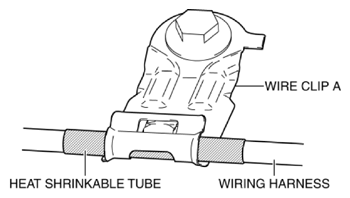

Secure the heat shrinkable tube on the wiring harness to wire clip A.
Fig 1: Identifying Heat Shrinkable Tube, Wiring Harness And Wire Clip A
Courtesy of MAZDA MOTORS CORP.

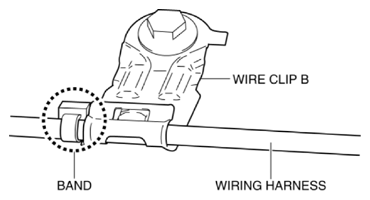

Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.
Fig 2: Identifying Wiring Harness And Wire Clip B
Courtesy of MAZDA MOTORS CORP.
