Rear Wiper Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

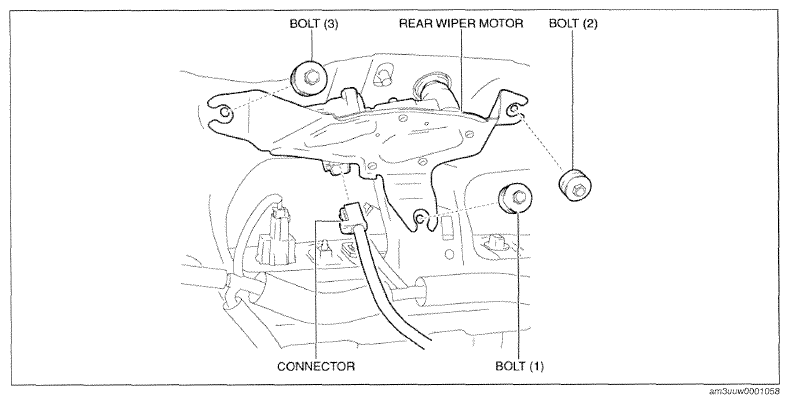

    Fig 1: Rear Wiper Motor Mounting Bolts Removing Sequence
    G09784105Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in the order of (1), (2), and (3). (See REAR WIPER MOTOR INSTALLATION NOTE .)
  5. Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.

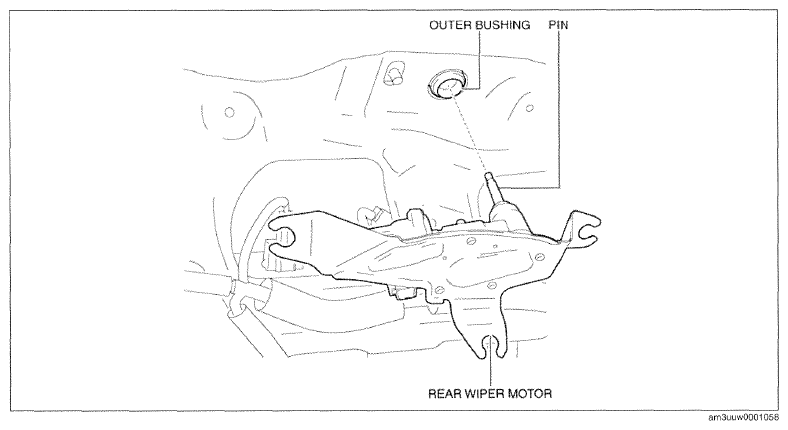

    Fig 2: Removing Rear Wiper Motor
    G09784106Courtesy of MAZDA MOTORS CORP.
  6. Press in the outer bushing from the outside of the liftgate.
  7. Pull the outer bushing from the inside of the liftgate and remove it.
  8. Install in the reverse order of removal.

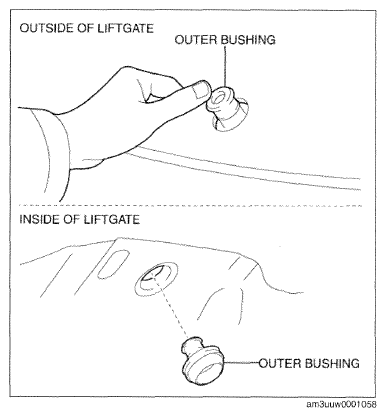

    Fig 3: Pressing Outer Bushing From Outside Of Liftgate
    G09784107Courtesy of MAZDA MOTORS CORP.
