Front Turn Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Partially peel back front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove the screws.

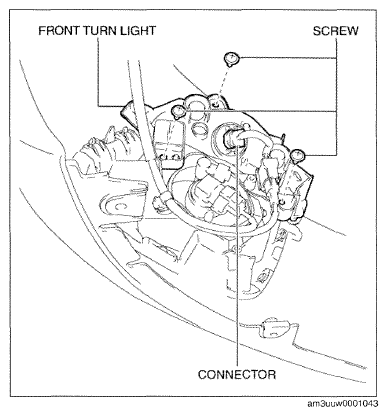

    Fig 1: Identifying Front Turn Light, Connector And Screws
    G09772451Courtesy of MAZDA MOTORS CORP.
  5. Pull out the front turn light from the pins and remove the front turn light.
  6. Install in the reverse order of removal.

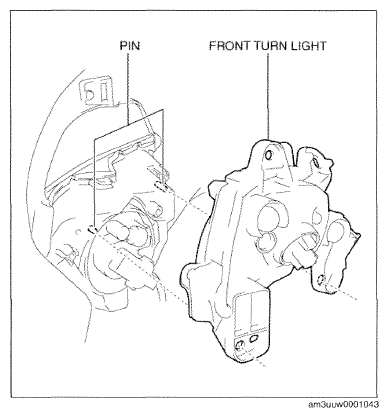

    Fig 2: Pulling Out Front Turn Light From Pins
    G09772452Courtesy of MAZDA MOTORS CORP.
