Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the front fog light bezel No. 1. (See FRONT FOG LIGHT BEZEL REMOVAL/INSTALLATION .)
  4. Remove the screws.

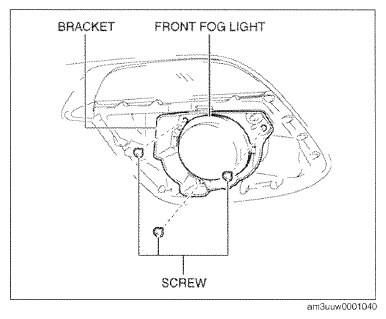

    Fig 1: Identifying Front Fog Light And Screws
    G09772459Courtesy of MAZDA MOTORS CORP.
  5. Pull out the pins from the bracket and pull out the front fog light and the bracket from the front bumper.

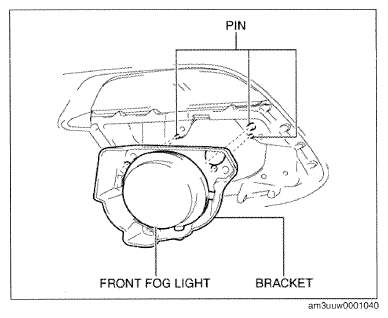

    Fig 2: Pulling Out Front Fog Light And Bracket From Front Bumper
    G09772460Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector and remove the front fog light and the bracket.

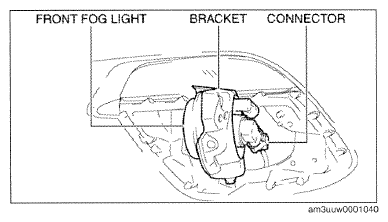

    Fig 3: Identifying Connector, Front Fog Light And Bracket
    G09772461Courtesy of MAZDA MOTORS CORP.
  7. Remove the screw.
  8. Remove the bolt.
  9. Remove the front fog light from the bracket.
  10. Install in the reverse order of removal.
  11. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)

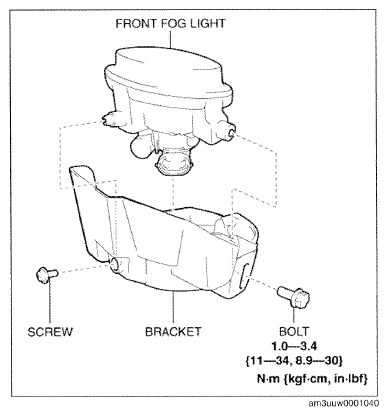

    Fig 4: Removing Front Fog Light From Bracket With Torque Specifications
    G09772462Courtesy of MAZDA MOTORS CORP.
