Cooling System Location Index

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

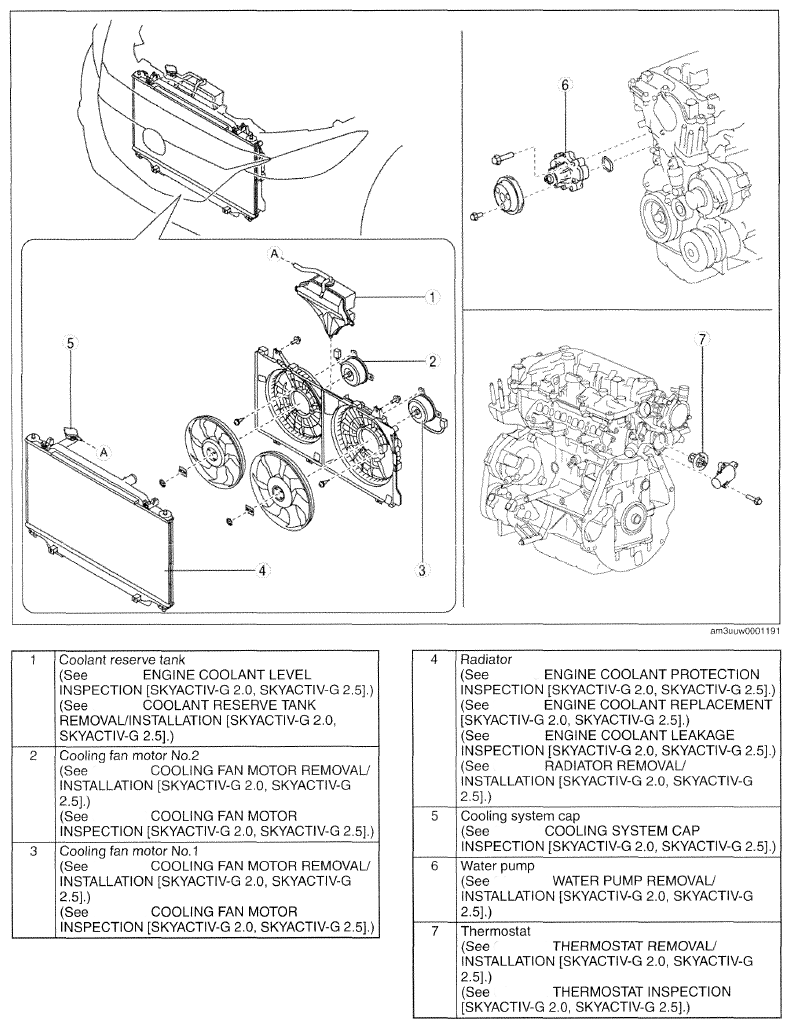

Fig 1: Identifying Cooling System Components (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
G09770886Courtesy of MAZDA MOTORS CORP.
