Air Fuel Ratio (A/F) Sensor Removal/Installation
>>
Assembly of Wiring Harness to Wire Clip Note
Assembly of Wiring Harness to Wire Clip Note
Secure the wiring harness to wire clip A so that the band on the wiring harness is positioned to the position shown in the figure.
Fig 1: Securing Wiring Harness To Wire Clip
Courtesy of MAZDA MOTORS CORP.

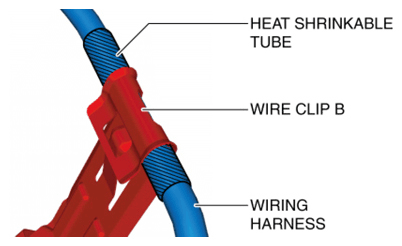

Secure the heat shrinkable tube on the wiring harness to wire clip B.
Fig 2: Securing Heat Shrinkable Tube On Wiring Harness
Courtesy of MAZDA MOTORS CORP.
