Using commander switch

  1. Input the diagnostic assist code by rotating the commander knob.

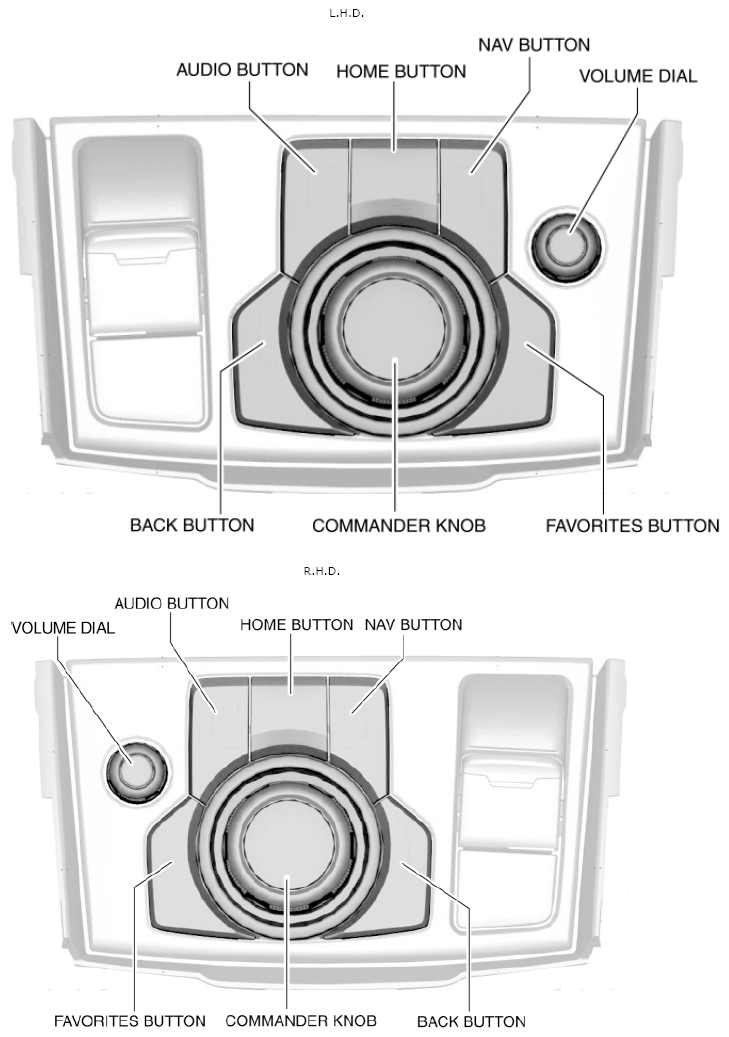

    Fig 1: Identifying Commander Switch Related Components (LHD/RHD)
    G10987177Courtesy of MAZDA MOTORS CORP.
  2. Press the commander knob.
  3. Perform the inspection according to the diagnostic assist code list. (See DIAGNOSTIC ASSIST CODE LIST .)
NOTE:
  • If [- REJECTED] is displayed, the inspection cannot be performed because communication is not enabled between the related parts, or the conditions are not met even if communication is enabled. Therefore, verify the display [- REJECTED] referring to the following procedure. (See [- REJECTED] IS DISPLAYED .)
