DTC B00C0-93; B00C1-93: Occupant Classification Sensor Communication Error: Notes

System malfunction location
  • Occupant classification sensor communication error
Detection condition
WARNING:
  • Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
  • Malfunction signal receibed occupant classification sensor
Fail-safe  -
Possible cause
  • Occupant classification sensor malfunction
  • SAS control module malfunction

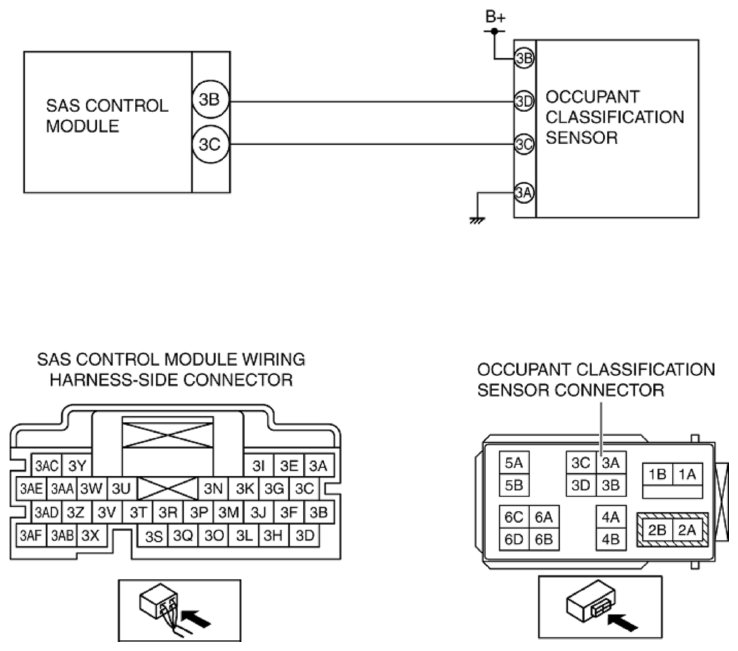

G10986805
