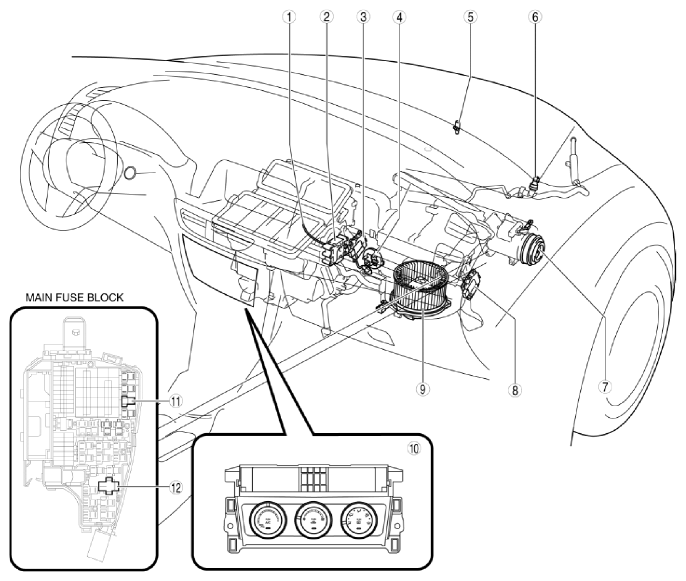

| 1 |
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 2 |
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 3 |
Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 4 |
Blower fan controller
(See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See BLOWER FAN CONTROLLER INSPECTION [MANUAL AIR CONDITIONER] .) |
| 5 |
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 6 |
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 7 |
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER] .)
(See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER] .)
(See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER] .) |
| 8 |
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 9 |
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 10 |
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
(See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER] .) |
| 11 |
A/C relay
(See
RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
| 12 |
Blower relay
(See
RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
