Airflow Mode Actuator Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the airflow mode actuator connector.

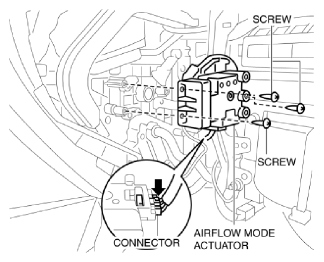

    Fig 1: Disconnecting Airflow Mode Actuator Connector
    G10986677Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the airflow mode actuator.
  6. Remove the airflow mode main link.
    Fig 2: Removing Airflow Mode Main Link
    G10986678Courtesy of MAZDA MOTORS CORP.
  7. Remove the bracket.
    Fig 3: Removing Air Flow Mode Actuator Bracket
    G10986679Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal. (See AIRFLOW MODE ACTUATOR INSTALLATION NOTE .)
