Passenger Compartment Temperature Sensor Inspection

1. Measure the temperature around the passenger compartment temperature sensor and measure the resistance between passenger compartment temperature sensor terminals A and B.

• If the characteristics of the passenger compartment temperature sensor are not as shown in the graph, replace the passenger compartment temperature sensor.

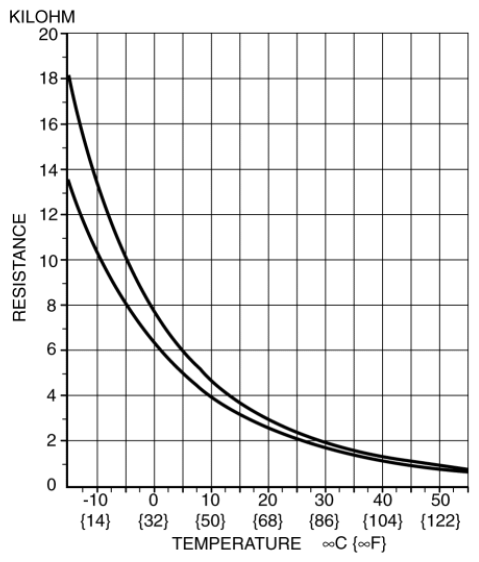

Fig 1: Passenger Compartment Temperature Sensor Resistance Temperature Graph

Courtesy of MAZDA MOTORS CORP.
