Blower Fan Controller Removal/Installation

NOTE:

• When removing the blower fan controller, perform the procedure in the posture shown in the figure.

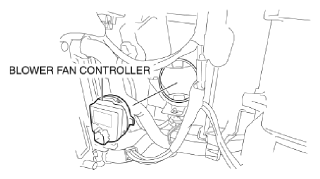

Fig 1: Removing Blower Fan Controller

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
2. Remove the following parts:
   1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
   2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
   3. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   4. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
3. Disconnect the connector.

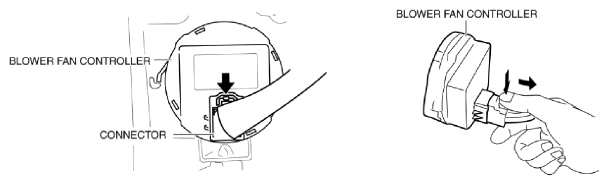

   Fig 2: Disconnecting Blower Fan Controller Connector

   Courtesy of MAZDA MOTORS CORP.
4. Rotate the blower fan controller (2) while pressing the tab (1).

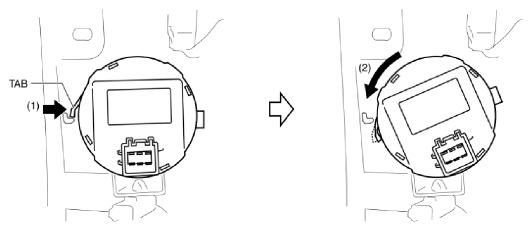

   Fig 3: Rotating Blower Fan Controller

   Courtesy of MAZDA MOTORS CORP.
5. Remove the blower fan controller.
   Fig 4: Identifying Blower Fan Controller

   Courtesy of MAZDA MOTORS CORP.
6. Install in the reverse order of removal.
