Ambient Temperature Sensor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

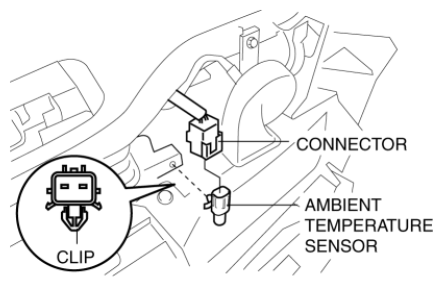

    Fig 1: Identifying Ambient Temperature Sensor, Connector And Clip
    G10986658Courtesy of MAZDA MOTORS CORP.
  4. Remove the ambient temperature sensor.
  5. Install in the reverse order of removal.
