Airflow Mode Actuator Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the airflow mode actuator connector.
  4. Remove the screws.

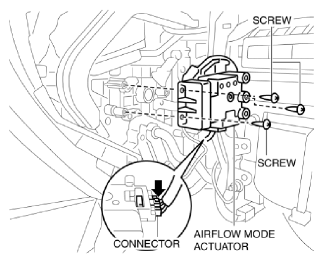

    Fig 1: Identifying Airflow Mode Actuator, Connector And Screws
    G10986621Courtesy of MAZDA MOTORS CORP.
  5. Remove the airflow mode actuator.
  6. Remove the airflow mode main link.
    Fig 2: Identifying Airflow Mode Main Link And Airflow Mode Actuator
    G10986622Courtesy of MAZDA MOTORS CORP.
  7. Remove the bracket.
    Fig 3: Identifying Airflow Mode Actuator And Bracket
    G10986623Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal. (See AIRFLOW MODE ACTUATOR INSTALLATION NOTE .)
