Door Lock System (With Advanced Keyless Entry System)

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

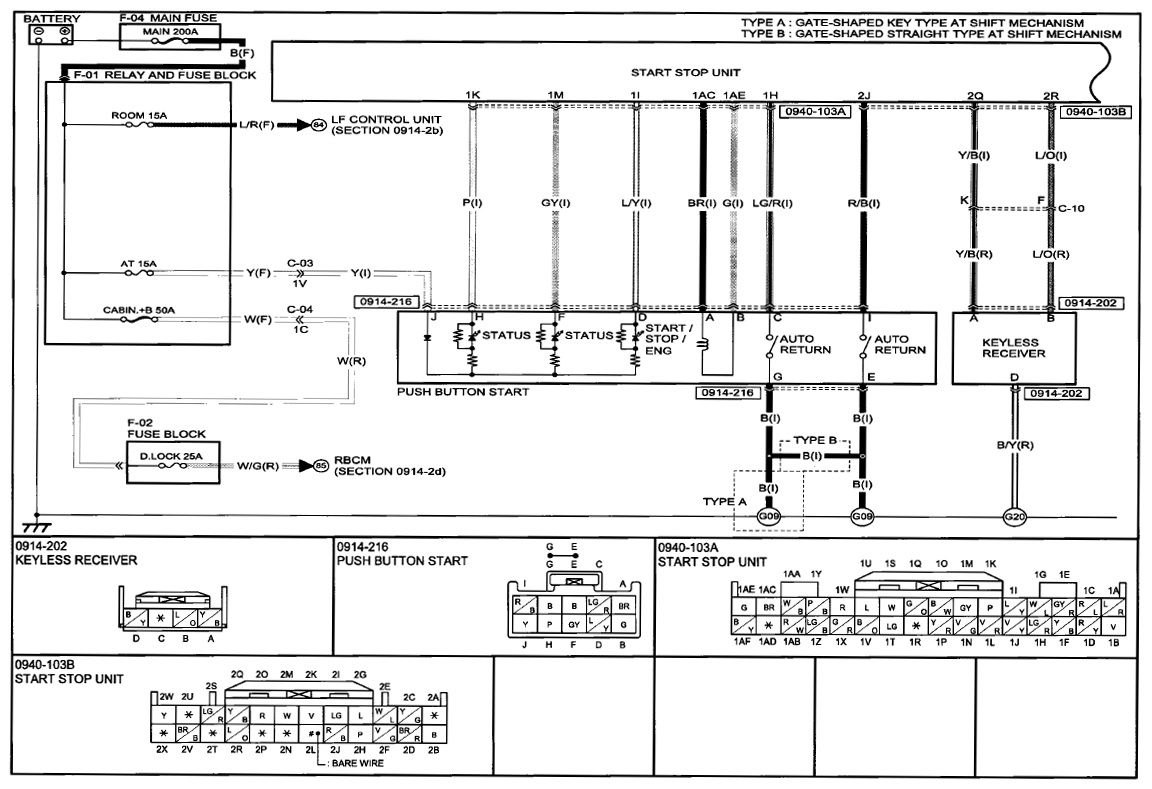

Fig 1: Door Lock - With Advanced Keyless Entry System Communication Diagram (0914-2A)

Courtesy of MAZDA MOTORS CORP.

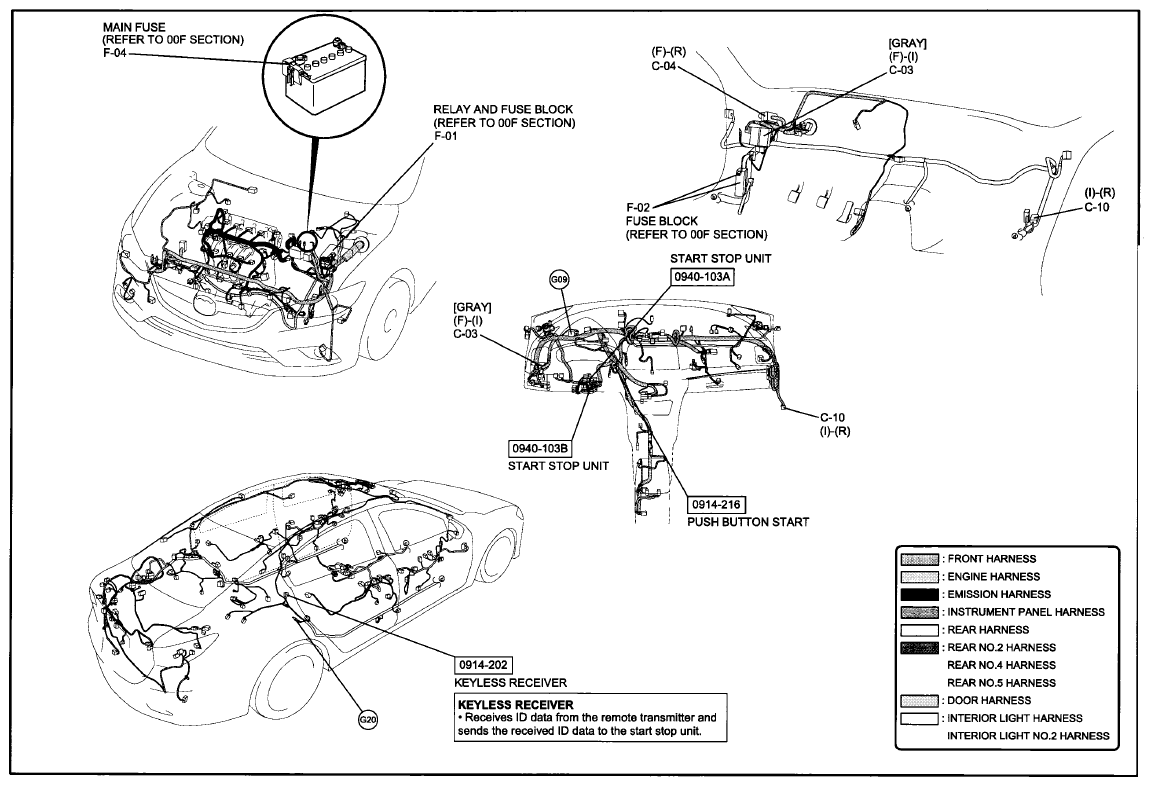

Fig 2: Door Lock - With Advanced Keyless Entry System Wiring Harness Connectors (0914-2A)

Courtesy of MAZDA MOTORS CORP.

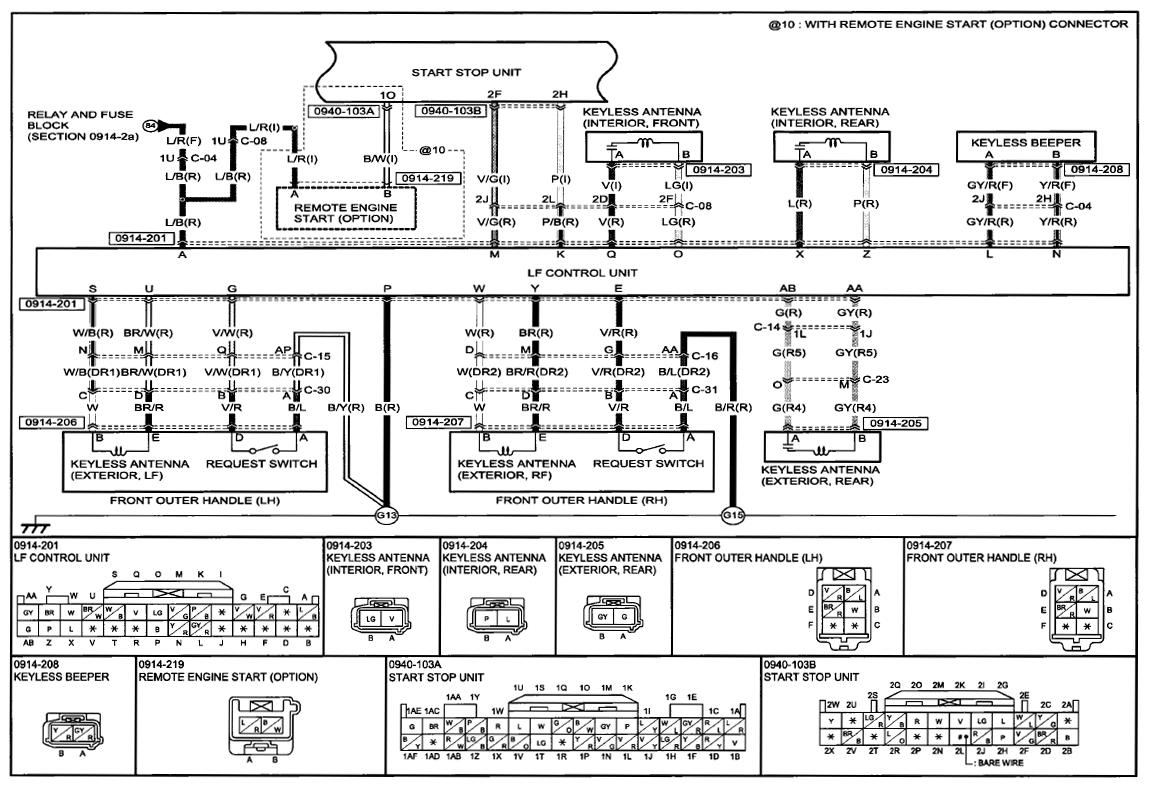

Fig 3: Door Lock - With Advanced Keyless Entry System Communication Diagram (0914-2B)

Courtesy of MAZDA MOTORS CORP.

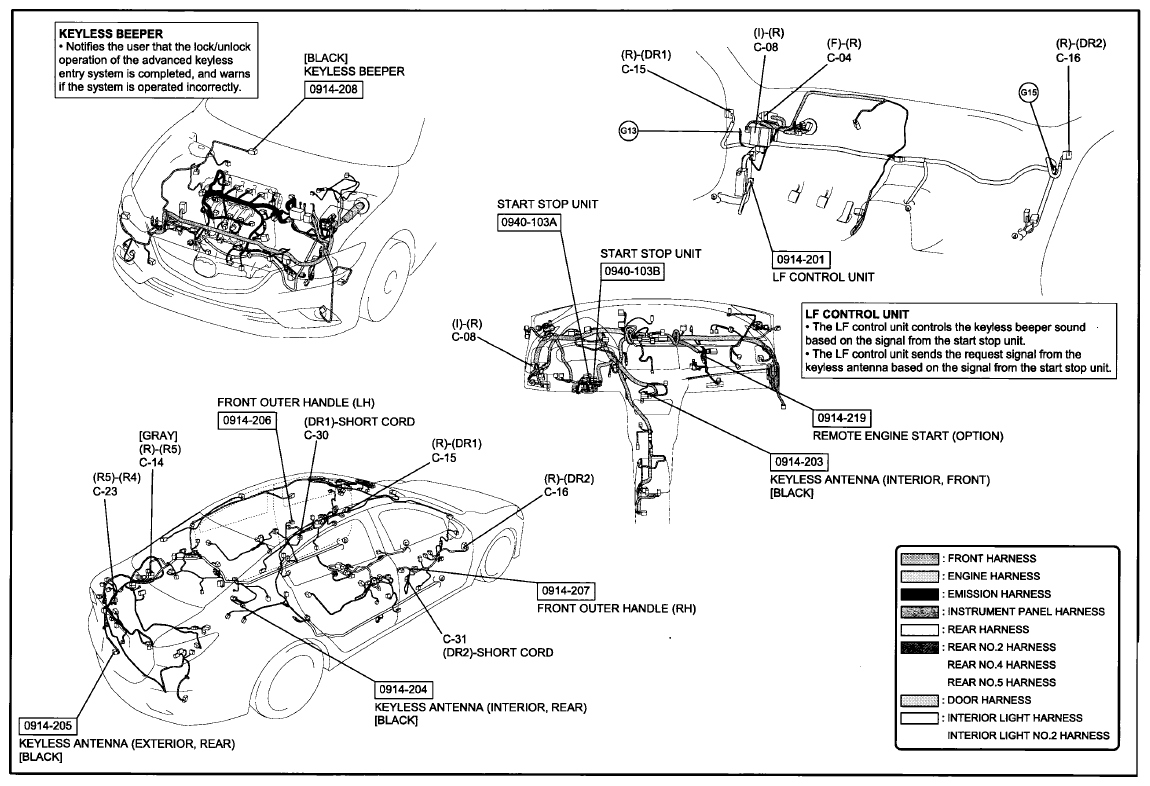

Fig 4: Door Lock - With Advanced Keyless Entry System Wiring Harness Connectors (0914-2B)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Door Lock - With Advanced Keyless Entry System Communication Diagram (0914-2C)

Courtesy of MAZDA MOTORS CORP.

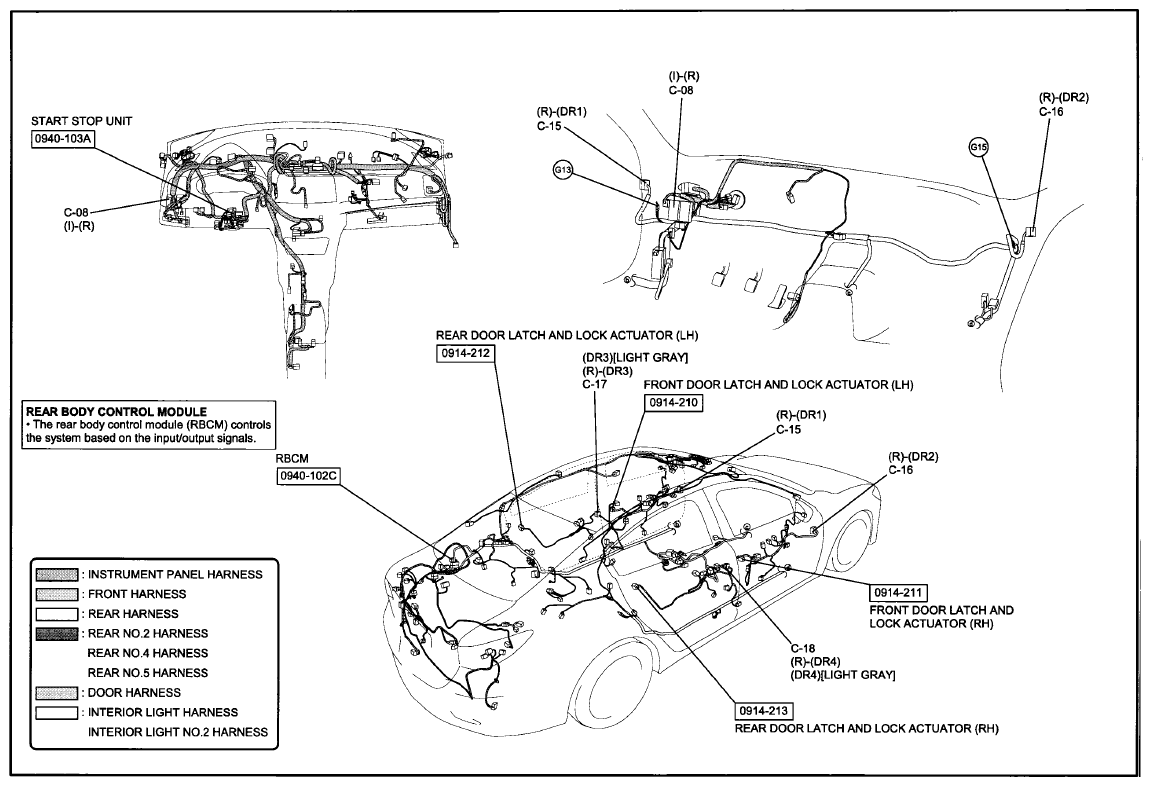

Fig 6: Door Lock - With Advanced Keyless Entry System Wiring Harness Connectors (0914-2C)

Courtesy of MAZDA MOTORS CORP.

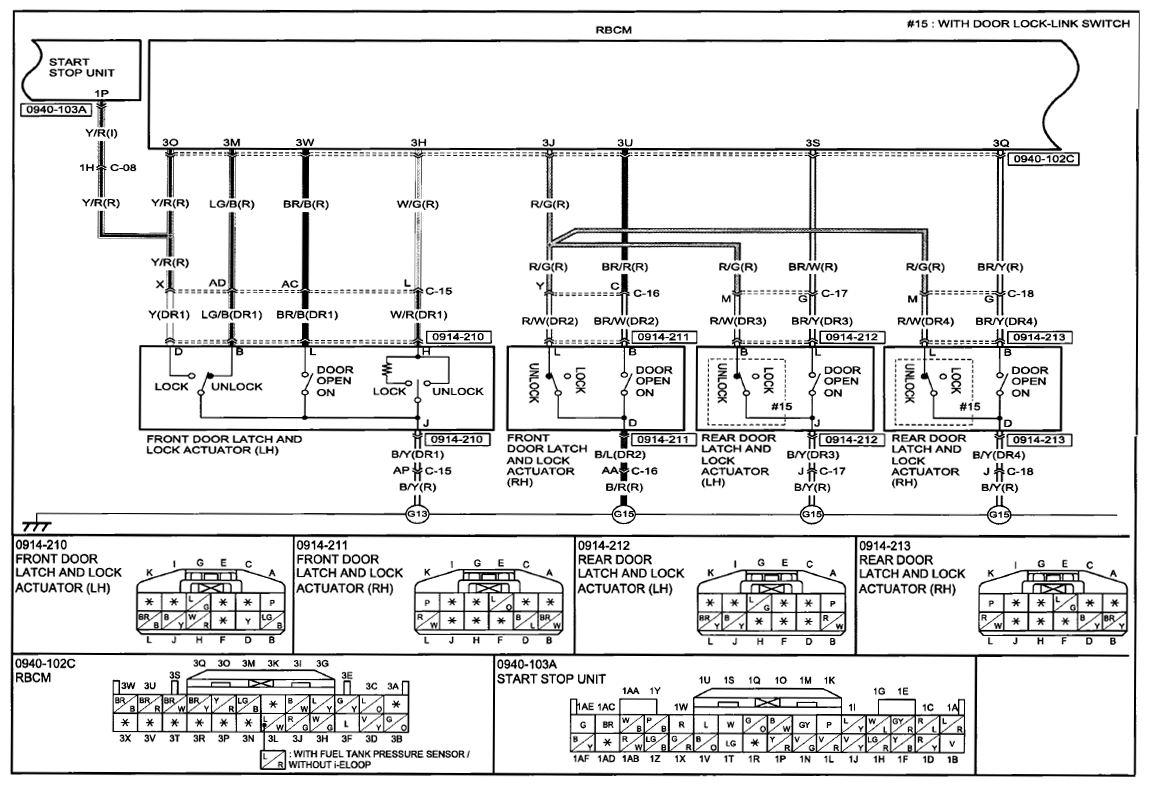

Fig 7: Door Lock - With Advanced Keyless Entry System Communication Diagram (0914-2D)

Courtesy of MAZDA MOTORS CORP.

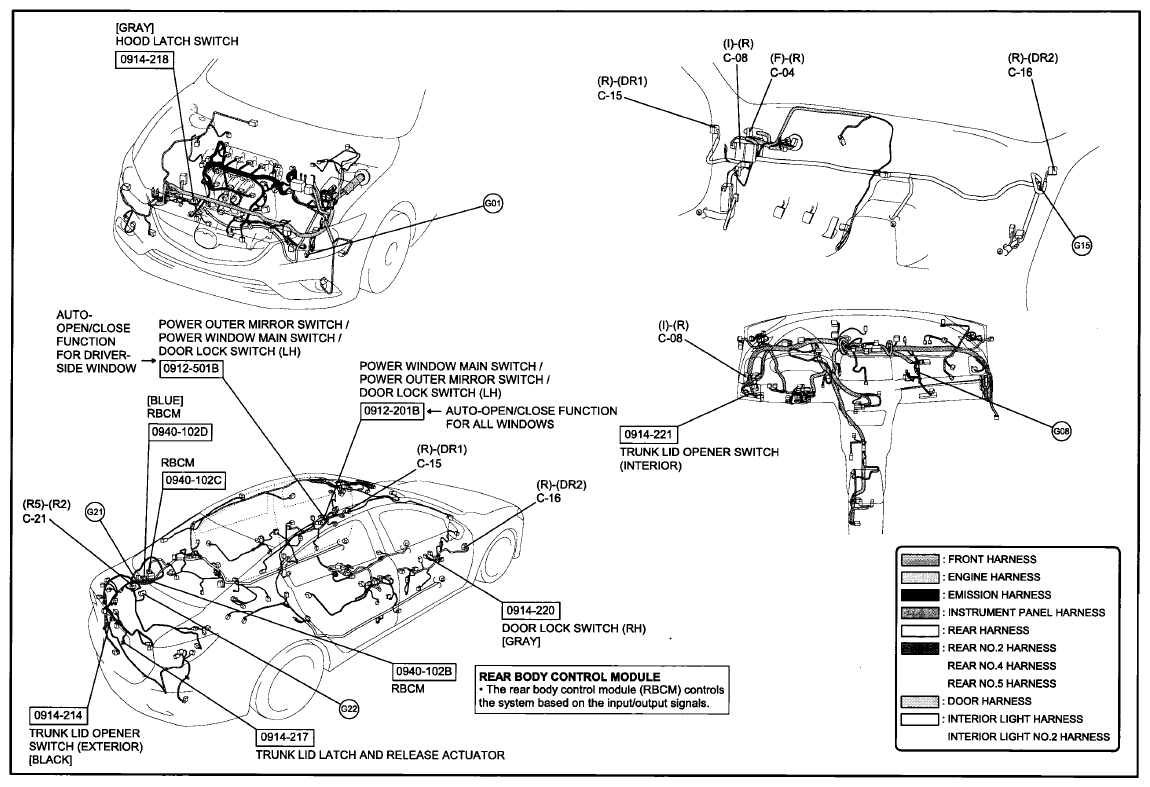

Fig 8: Door Lock - With Advanced Keyless Entry System Wiring Harness Connectors (0914-2D)

Courtesy of MAZDA MOTORS CORP.

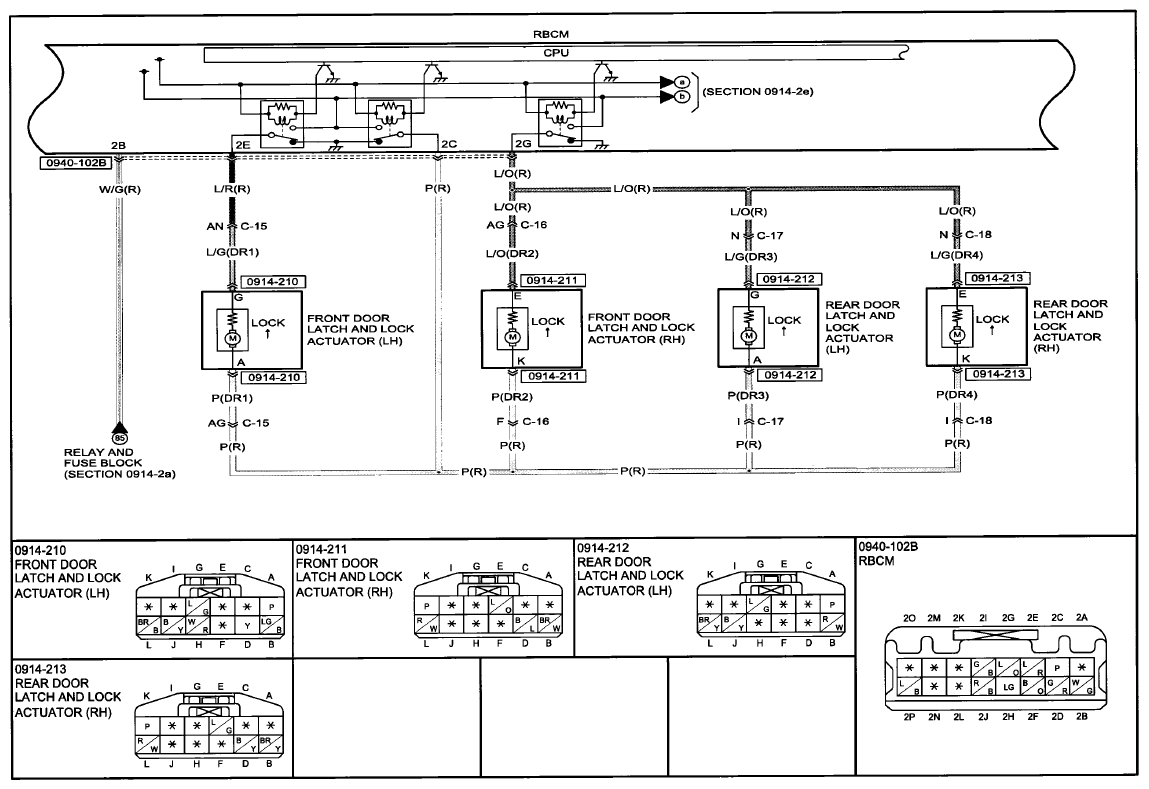

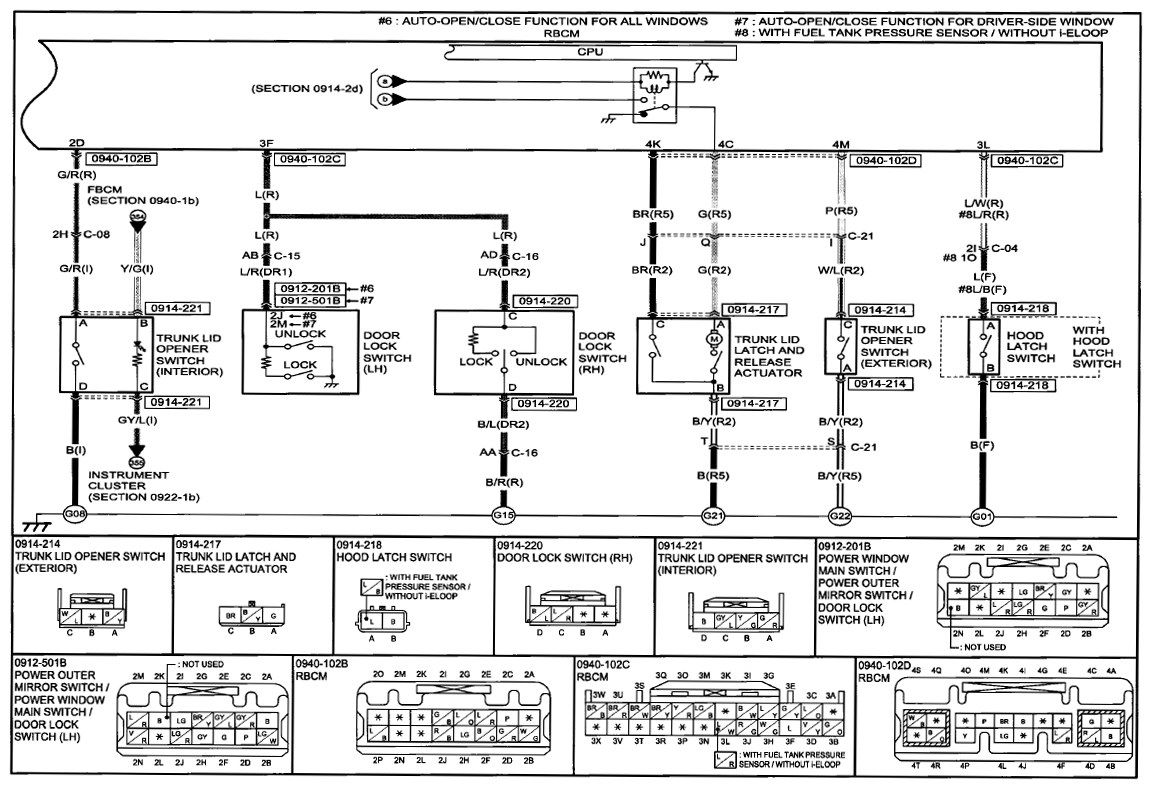

Fig 9: Door Lock - With Advanced Keyless Entry System Communication Diagram (0914-2E)

Courtesy of MAZDA MOTORS CORP.

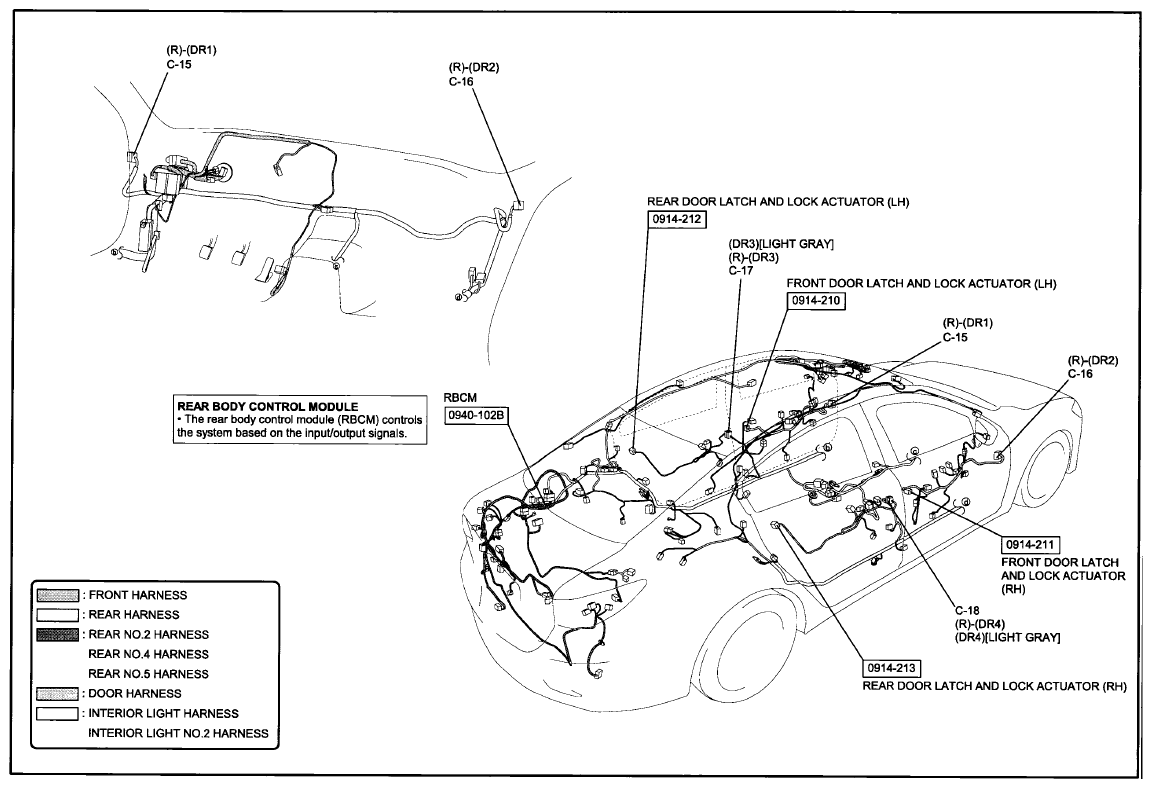

Fig 10: Door Lock - With Advanced Keyless Entry System Wiring Harness Connectors (0914-2E)

Courtesy of MAZDA MOTORS CORP.
