| DETECTION CONDITION |
- The engine oil solenoid valve control current exceeds the specification or the control voltage at the PCM terminal 1AS is less than the specification relative to the PCM control condition.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits the engine oil control.
|
| POSSIBLE CAUSE |

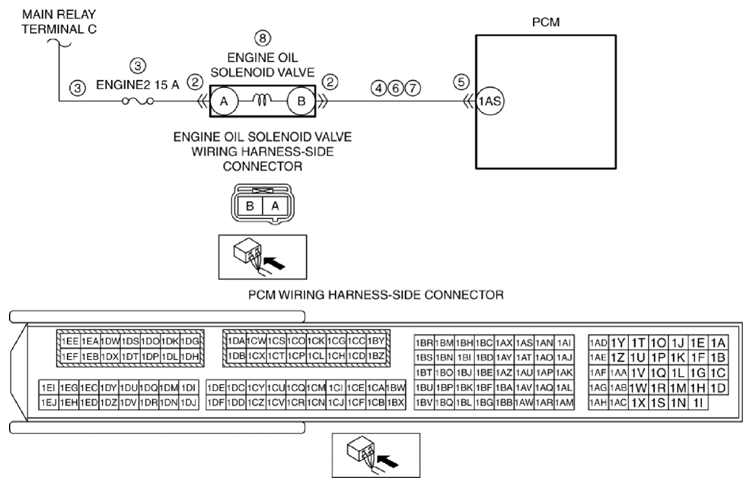

- Engine oil solenoid valve connector or terminals malfunction
- Short to ground or open circuit in engine oil solenoid valve power supply circuit
- Short to ground in wiring harness between ENGINE2 15 A fuse and engine oil solenoid valve terminal A
- ENGINE2 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal C and engine oil solenoid valve terminal A
- Short to ground in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- Open circuit in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- Engine oil solenoid valve malfunction
- PCM malfunction
|
|
|
