On-Board Diagnostic - Advanced Keyless Entry System
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

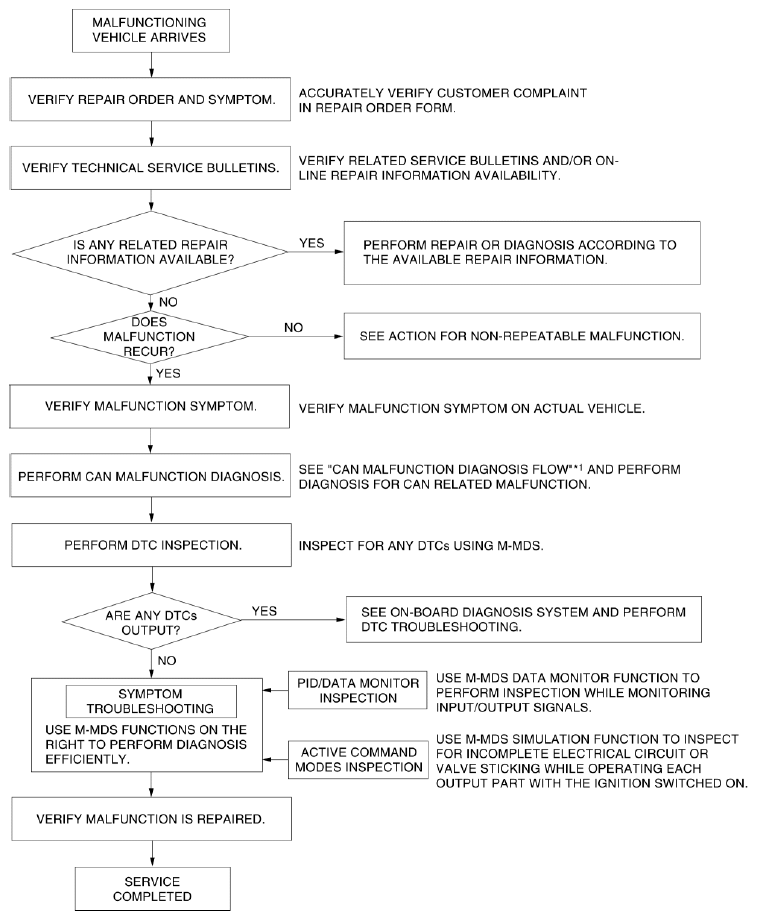

Fig 1: Advanced Keyless Entry System Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
