DTC B10D3-23: Request Switch Circuit Malfunction: Notes

Description	Request switch (RF) circuit malfunction
Detection condition	Start stop unit detected any of the following conditions at a vehicle speed of 5 km/h {3 mph} or more.  The request switch (RF) is continuously ON for 2 min or more.  The request switch (RF) was ON 7 times  before the vehicle speed decreased to less than 5 km/h {3 mph}.
Fail-safe function	Not applicable

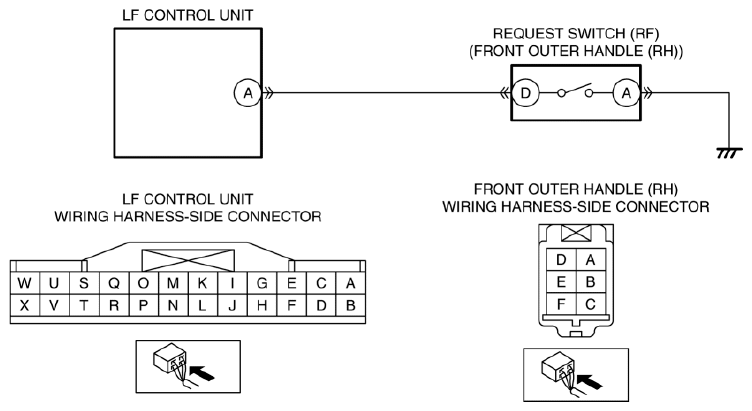

Possible cause	Front outer handle (RH) connector or terminal malfunction LF control unit connector or terminal malfunction Short to ground in wiring harness between LF control unit terminal A and front outer handle (RH) terminal D Request switch (RF) malfunction LF control unit malfunction Start stop unit malfunction
