Diagnostic Assist Code Input Procedure: Notes

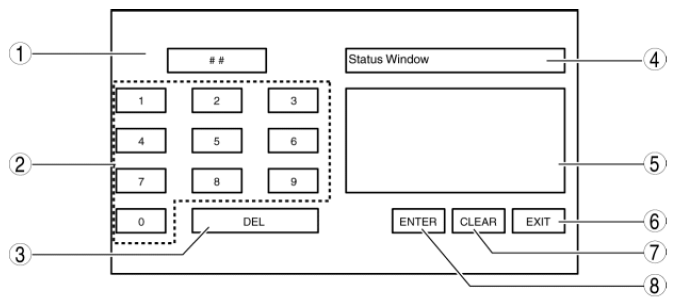

Fig 1: Identifying Diagnostic Assist Code Input Screen Switches

Courtesy of MAZDA MOTORS CORP.

No.	Name	Content/function
1	Diagnostic assist code display screen	Displays the diagnostic assist code.
2	Diagnostic assist code input switch	Inputs the diagnostic assist code.
3	DEL switch	Clears the diagnostic assist code.
4	Diagnostic content display screen	Displays the diagnostic content.
5	Diagnostic results display screen	Displays the diagnostic results.
6	EXIT switch(1)/END switch(2)	Cancels the diagnostic assist function./Stops the diagnostic assist function being performed.
7	CLEAR switch	Clears the diagnostic result display.
8	ENTER switch	Transfers to the diagnostic assist function.
(1) Displayed while the diagnostic assist function is not performed. (2) Displayed while the diagnostic assist function is being performed.
