Laser Sensor Removal Note

  1. Remove the laser sensor in the order shown in the figure.

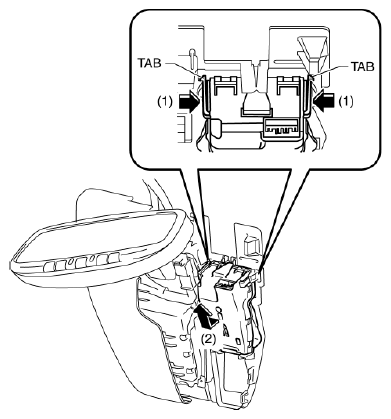

    Fig 1: Removing Laser Sensor
    G10960824Courtesy of MAZDA MOTORS CORP.
