HVAC Control System Location Index

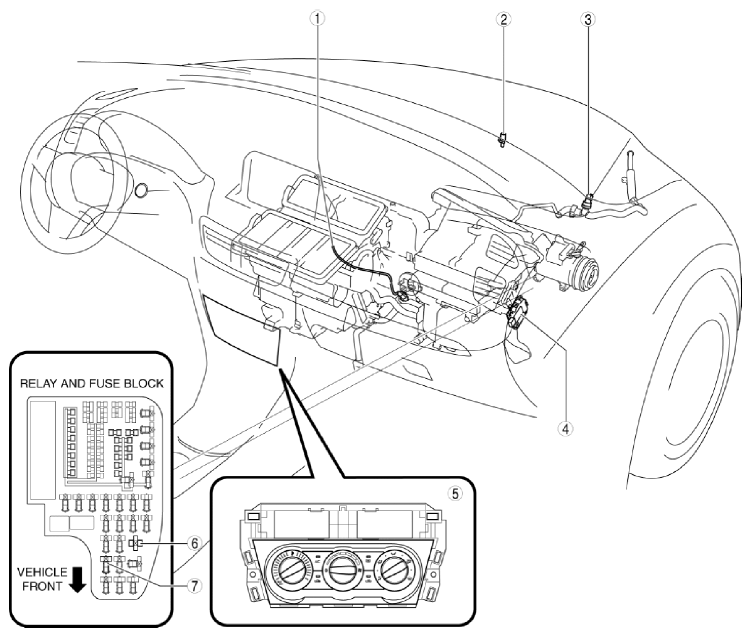

Fig 1: HVAC Control System Components Location (Manual Air Conditioner)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .)
2	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .)
3	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .)
4	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .)
5	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER] .)
6	Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
7	A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
