On-Board Diagnostic System Wiring Diagram
On-Board Diagnostic System Wiring Diagram

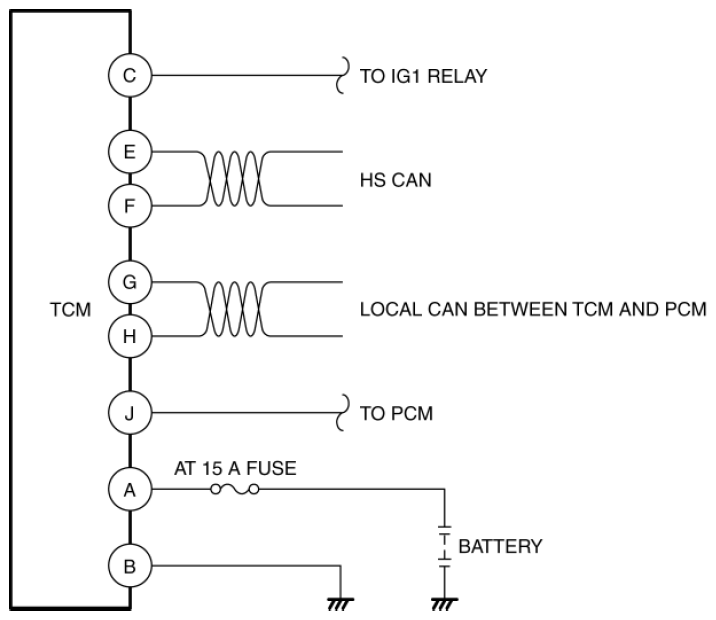

Fig 1: FW 6A-EL On Board Diagnostic System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
