Driver-Side Air Bag Module Installation [Standard Deployment Control System]

WARNING:

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (Refer to AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

CAUTION:

• If the driver-side air bag module is connected with the air bag module wiring harness and the horn switch wiring harness crossing over each other, the wiring harnesses could become tangled and damaged. When connecting the connectors, be careful that the wiring harnesses are not crossed over each other.

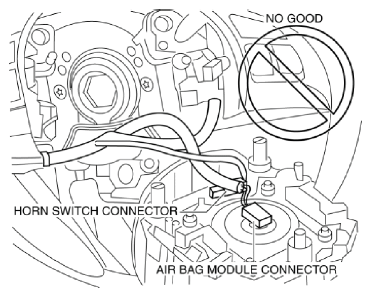

Fig 1: Driver-Side Air Bag Module Installation

Courtesy of MAZDA MOTORS CORP.

1. Point the upper side of the driver-side air bag module towards the steering wheel and connect the following connectors as shown in the figure.

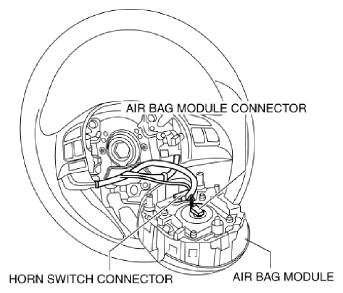

   Fig 2: Identifying Horn Switch Connector

   Courtesy of MAZDA MOTORS CORP.
   • Air bag module connector.
   • Horn switch connector
2. Rotate the driver-side air bag module counterclockwise 180 degrees.

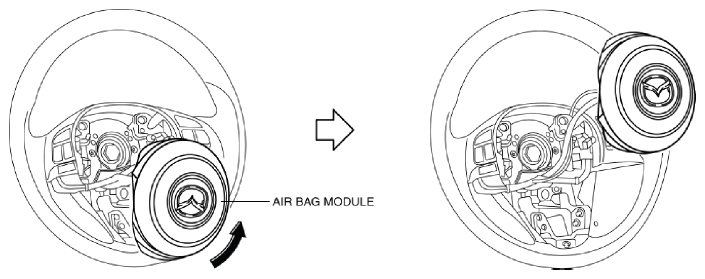

   Fig 3: Rotating Air Bag Module Counterclockwise

   Courtesy of MAZDA MOTORS CORP.
3. Align the driver-side air bag module pin with the steering wheel hole.

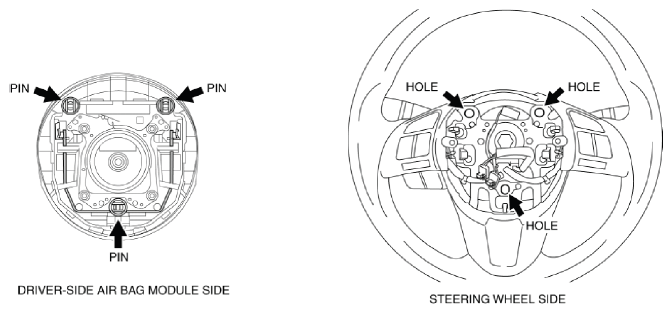

   Fig 4: Aligning Driver-Side Air Bag Module Pin With Steering Wheel Hole

   Courtesy of MAZDA MOTORS CORP.
4. Press the pin of the driver-side air bag module until a click sound is heard.
5. Verify that the quick release connector is securely attached by lightly pulling the driver-side air bag module.
6. Connect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
7. Switch the ignition ON (engine off or on).
8. Verify that the air bag system warning light illuminates for approx. 6 s  and goes out.
   • If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (Refer to FLOWCHART [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
