Blower Unit Disassembly/Assembly

CAUTION:
  • Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
  1. Disassemble in the order indicated in the table.

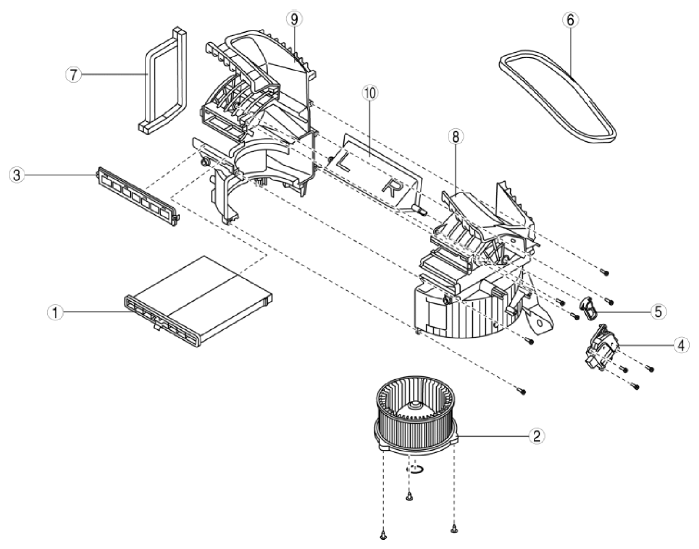

    Fig 1: Exploded View Of Blower Unit
    G10961399Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Air filter
    2 Blower motor
    3 Cover
    4 Air intake actuator
    5 Air intake link
    6 Polyurethane (1)
    7 Polyurethane (2)
    8 Blower case (1)
    9 Blower case (2)
    10 Air intake door
  2. Assemble in the reverse order of disassembly.
