DTC P2305-00: Ion Sensor No. 2 Circuit Problem: Notes

DTC P2305:00	Ion sensor No. 2 circuit problem
DETECTION CONDITION	After the engine is started, when the engine speed is 2, 000 rpm or less , the signal input to the PCM from ion sensor No. 2 is in error. Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA (Mode 2) is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

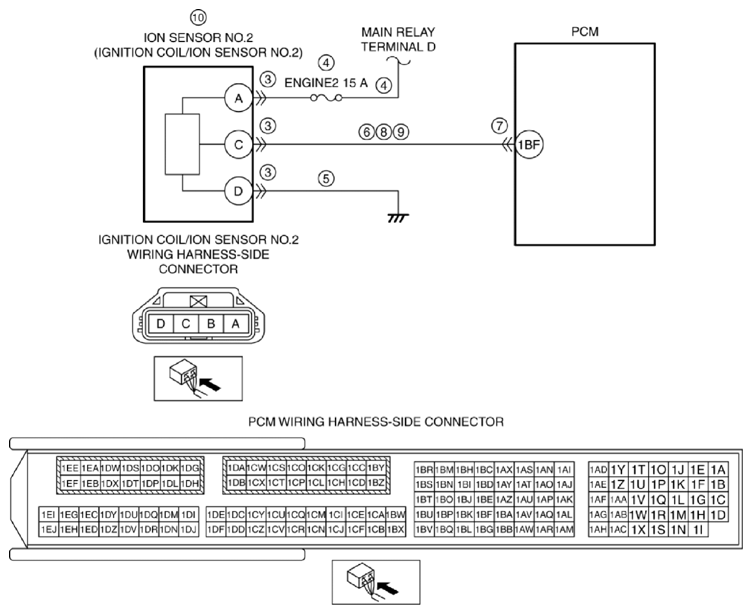

POSSIBLE CAUSE	Cylinder No. 2 misfire Ignition coil/ion sensor No. 2 connector or terminals malfunction Short to ground or open circuit in ion sensor No. 2 power supply circuit Short to ground in wiring harness between ENGINE2 15 A fuse and ignition coil/ion sensor No. 2 terminal A ENGINE2 15 A fuse malfunction Open circuit in wiring harness between main relay terminal D and ignition coil/ion sensor No. 2 terminal A Open circuit in wiring harness between ignition coil/ion sensor No. 2 terminal D and body ground Short to ground in wiring harness between ignition coil/ion sensor No. 2 terminal C and PCM terminal 1BF PCM connector or terminals malfunction Short to power supply in wiring harness between ignition coil/ion sensor No. 2 terminal C and PCM terminal 1BF Open circuit in wiring harness between ignition coil/ion sensor No. 2 terminal C and PCM terminal 1BF Ion sensor No. 2 malfunction PCM malfunction
