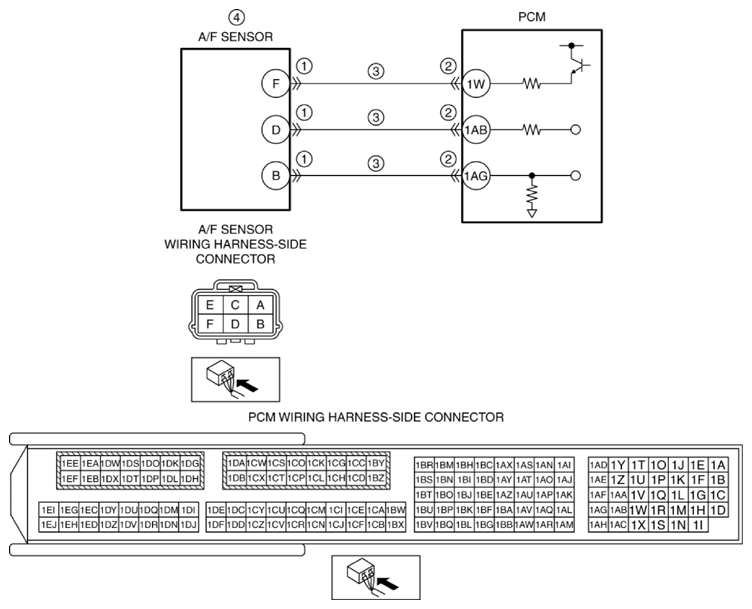

Home >> Mazda >> 2016 >> 3 Sport, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic - Engine Control System (1 Of 4) >> DTC P0132-00: A/F Sensor Circuit High Input >> System Wiring Diagram
