Fresh-air Duct Removal Note

  1. Pull out the fresh-air duct while pressing the tab shown in the figure.

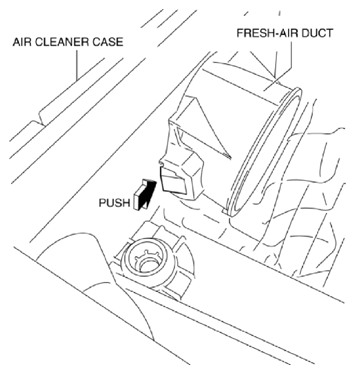

    Fig 1: Pulling Out Fresh-Air Duct
    G10959968Courtesy of MAZDA MOTORS CORP.
