Evaporative Hose Installation Note

  1. Install the evaporative hose as shown in the figure.

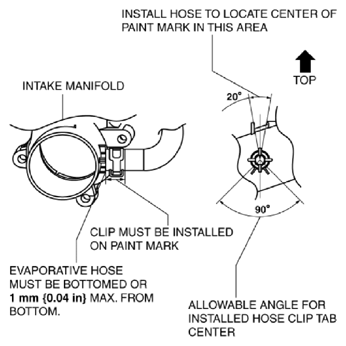

    Fig 1: Installing Evaporative Hose
    G10959972Courtesy of MAZDA MOTORS CORP.
