Exhaust Manifold Insulator Installation Note

Temporarily tighten the exhaust manifold insulator.
Tighten the exhaust manifold insulator in the order shown in the figure.

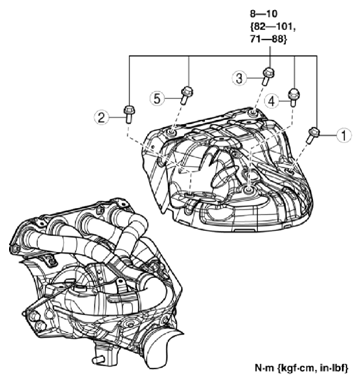

Fig 1: Exhaust Manifold Insulator Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Exhaust manifold insulator tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
