Clearance Inspection

Remove the ABS wheel-speed sensor.
Measure the distance between the ABS wheel-speed sensor installation surface and the ABS sensor rotor. This is dimension A.

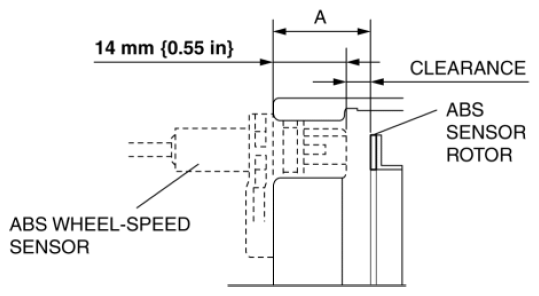

Fig 1: Checking ABS Wheel Speed Sensor And ABS Sensor Rotor Clearance
Courtesy of MAZDA MOTORS CORP.
Calculate the clearance between the front ABS wheel-speed sensor and the ABS sensor rotor using the following formula:
- Clearance (mm) = A-14 {0.55}
Verify that the clearance between the ABS sensor rotor and the ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, replace it.
  Clearance
- 0.47-0.99 mm {0.019-0.038 in}
