3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Dynamic Stability Control (Service Information)
>>
DSC System Wiring Diagram
DSC System Wiring Diagram

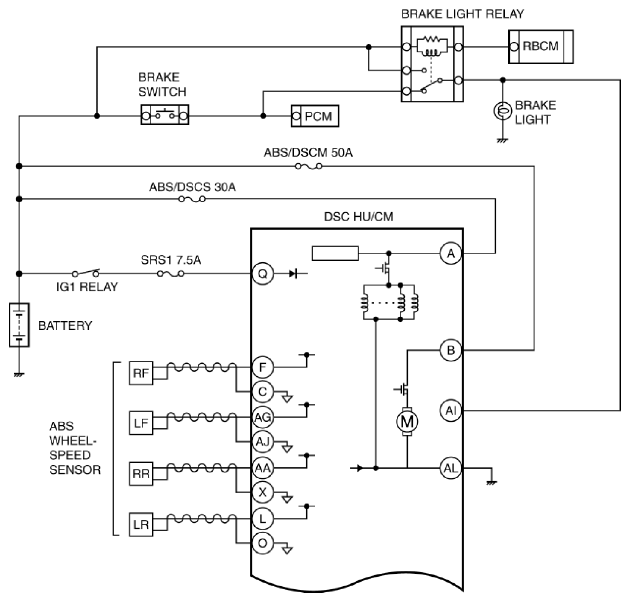

Fig 1: DSC System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

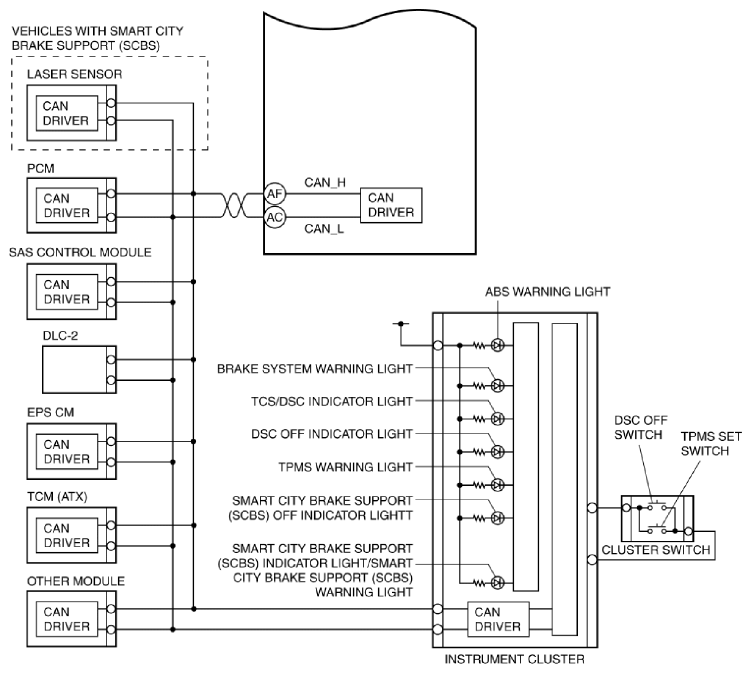

Fig 2: DSC System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
