LED Illumination Inspection

  1. Remove the cluster switch. (Refer to CLUSTER SWITCH REMOVAL/INSTALLATION .)
  2. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

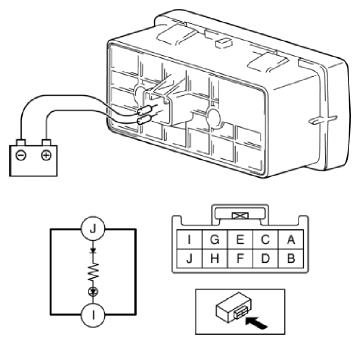

    Fig 1: Applying Battery Positive Voltage To Cluster Switch Terminal J
    G10960821Courtesy of MAZDA MOTORS CORP.
  3. Verify that the LED illuminates.
    • If there is any malfunction, replace the cluster switch.
