Radar Cruise Control System Location Index (MRCC)

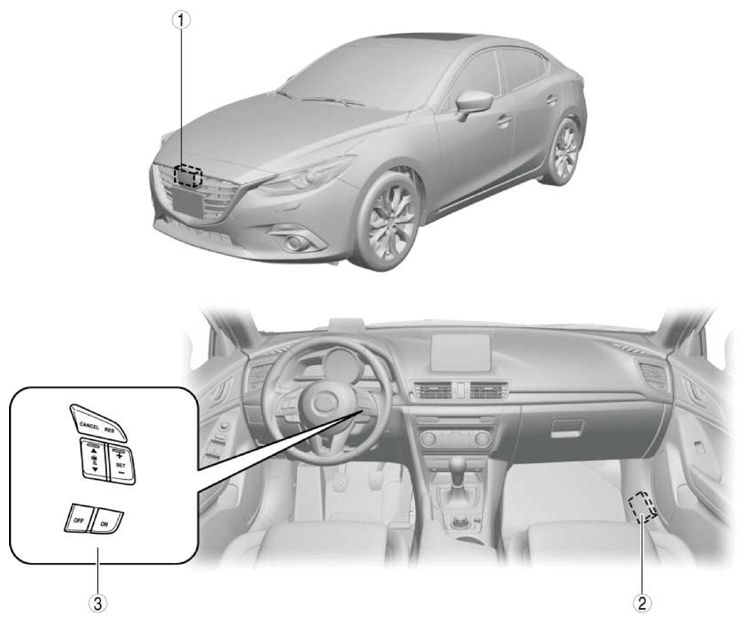

Fig 1: Identifying Radar Cruise Control System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radar sensor (See RADAR SENSOR REMOVAL/INSTALLATION (MRCC) .) (See RADAR SENSOR DISASSMBLY/ASSEMBLY (MRCC) .) (See RADAR SENSOR AIMING (MRCC) .)
2	Vehicle control module (V/C-module) (See VEHICLE CONTROL MODULE (V/C-MODULE) REMOVAL/INSTALLATION (MRCC) .) (See VEHICLE CONTROL MODULE (V/C-MODULE) INSPECTION (MRCC) .) (See MRCC INITIALIZATION SETTING (MRCC) .)
3	Cruise control switch (See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION (MRCC) .) (See CRUISE CONTROL SWITCH INSPECTION (MRCC) .)
