3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
On-Board Diagnostic [Vehicle Control Module - V/C-Module]
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

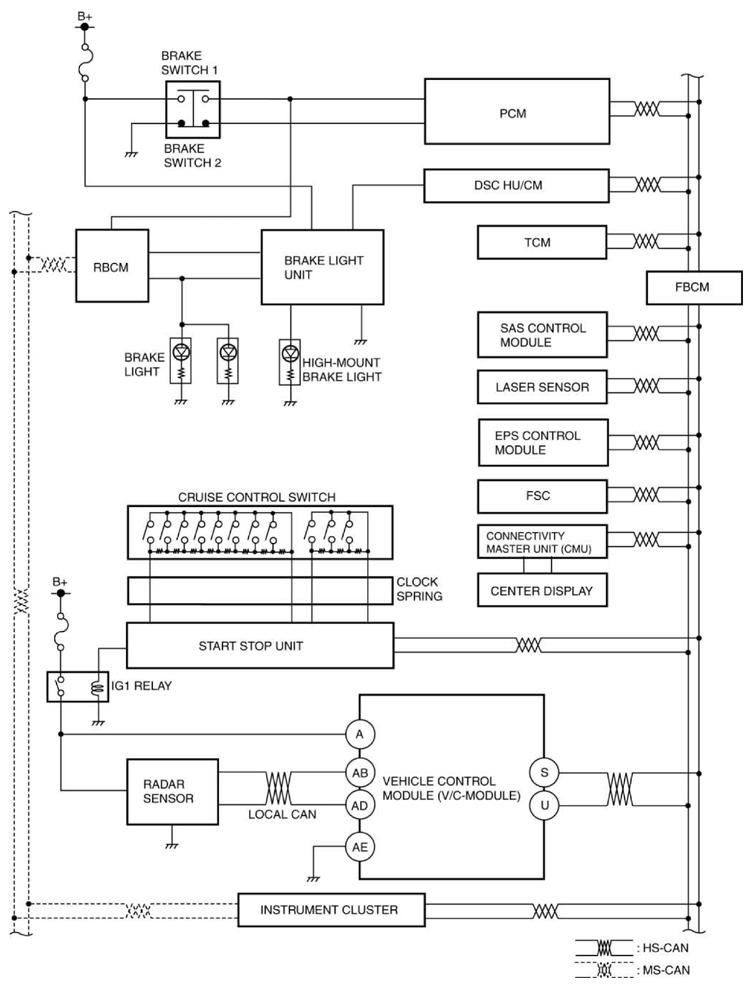

Fig 1: Vehicle Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
