Generator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

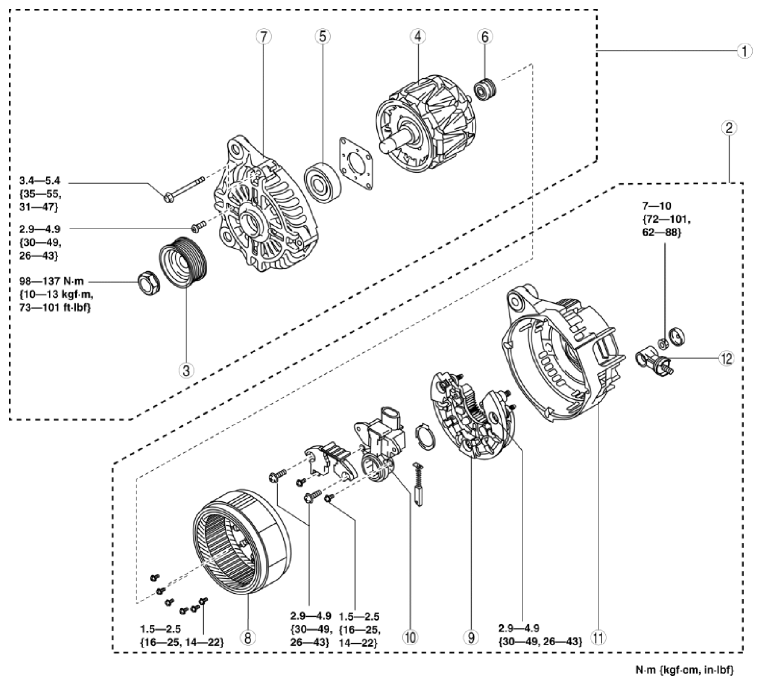

    Fig 1: Generator Assembly Exploded View
    G10964023Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Rotor component
    2 Stator coil component
    3 Pulley
    4 Rotor
    5 Front bearing
    6 Rear bearing
    7 Front cover
    8 Stator coil
    (See STATOR COIL DISASSEMBLY/ASSEMBLY NOTE .)
    9 Rectifier
    10 Regulator component
    11 Rear cover
    12 Terminal B component
