Adaptive Front Lighting System (AFS) Control Module Removal/Installation

NOTE:
  • The AFS control module stores the vehicle specification information.
  • A new AFS control module does not store any vehicle specification information.
  • When the ignition is switched ON after the AFS control module is replaced, the AFS control module reads the vehicle specification information sent via CAN transmission from the instrument cluster, and stores the vehicle specification information.
  • The AFS control module records the vehicle height while it is unoccupied.
  • Even if the battery is disconnected, the unoccupied vehicle height recorded by the AFS control module is not erased.
  • The new AFS control module does not record the vehicle height while it is unoccupied.
  • When the headlight auto leveling system initialization is performed after the AFS control module is replaced, the AFS control module inputs the vehicle height from the auto leveling sensor and records the vehicle height in unloaded condition.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front scuff plate (LH). (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the front side trim (LH). (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

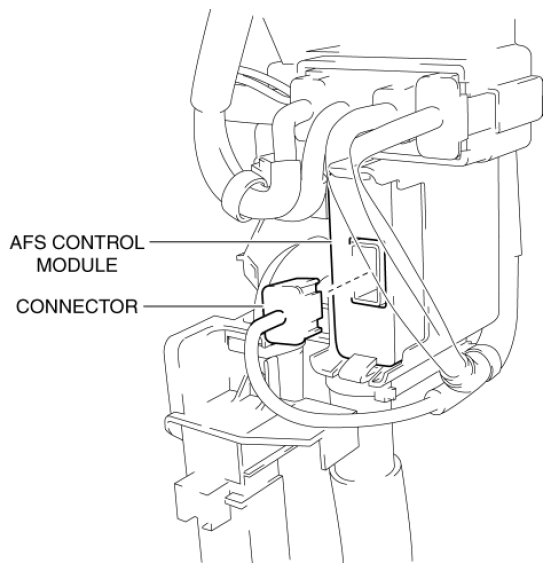

    Fig 1: Identifying AFS Control Module And Connector
    G10962763Courtesy of MAZDA MOTORS CORP.
  5. While pressing hook A of the bracket in the direction of arrow (1) shown in the figure, pull the AFS control module in the direction of arrow (2) to detach hook A of the bracket from the AFS control module.

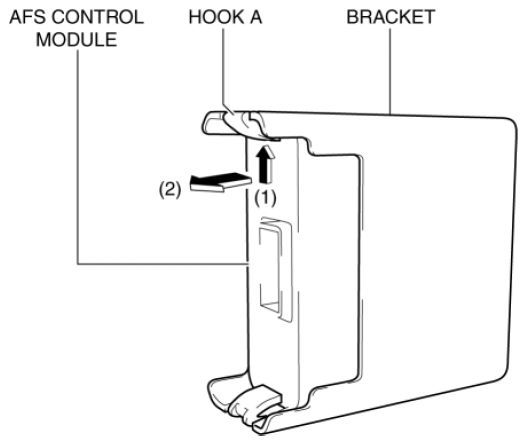

    Fig 2: Removing AFS Control Module Hook A
    G10962764Courtesy of MAZDA MOTORS CORP.
  6. While pressing hook B of the bracket in the direction of arrow (3) shown in the figure, pull the AFS control module in the direction of arrow (4) to detach hook B of the bracket from the AFS control module.

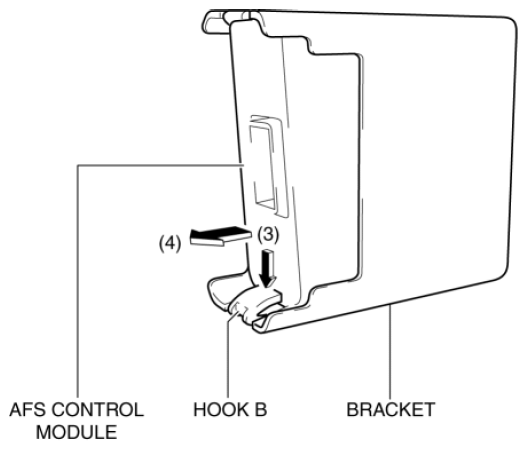

    Fig 3: Removing AFS Control Module Hook B
    G10962765Courtesy of MAZDA MOTORS CORP.
  7. Remove the AFS control module.
  8. Install in the reverse order of removal.
  9. Switch the ignition ON (engine off or on) and perform the AFS control module configuration.
  10. Clear the DTC. (Refer to CLEARING DTC [ADAPTIVE FRONT LIGHTING SYSTEM (AFS)] .)
  11. If the AFS control module is replaced with a new one, perform the headlight auto leveling system initialization. (Refer to HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
