Airflow Mode Main Link Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] . See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
  4. Remove the airflow mode main link as shown in the illustration.
  5. Install in the reverse order of removal.

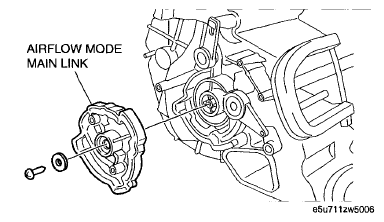

    Fig 1: Airflow Mode Main Link
    G06150628Courtesy of MAZDA MOTORS CORP.
