Negative Battery Cable Installation Note

  1. When connecting the negative battery cable to the battery, connect the negative battery cable and the ground cable as shown in the illustration.

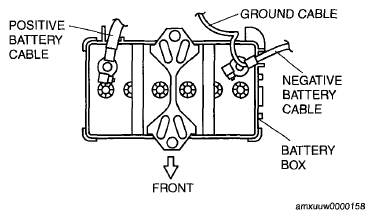

    Fig 1: Connecting Battery Cable To Battery
    G06150987Courtesy of MAZDA MOTORS CORP.
