Air Bag System Location Index [Two-Step Deployment Control System]
Air Bag System Location Index [Two-Step Deployment Control System]

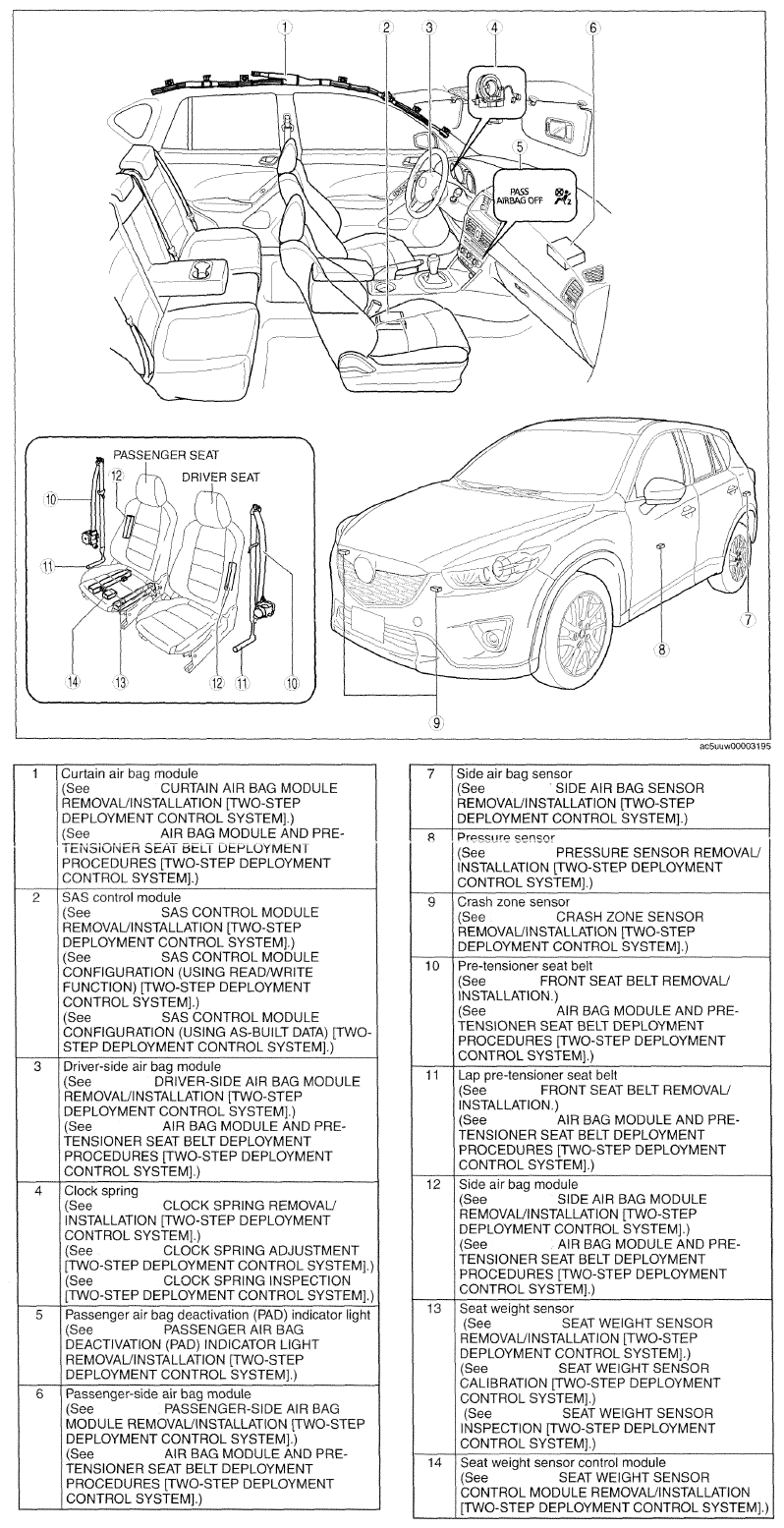

Fig 1: Air Bag System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
