Drain Hose Installation Note

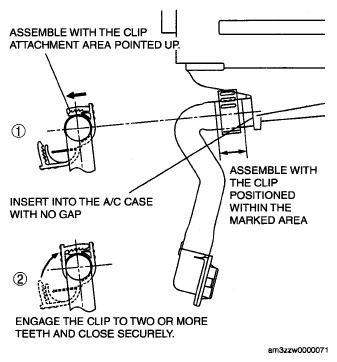

  1. Install the clip as shown in the figure.
    Fig 1: A/C Unit Installation Positions
    G04956297Courtesy of MAZDA MOTORS CORP.
