On-Board Diagnostic Wiring Diagram [Front Body Control Module (FBCM)]

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

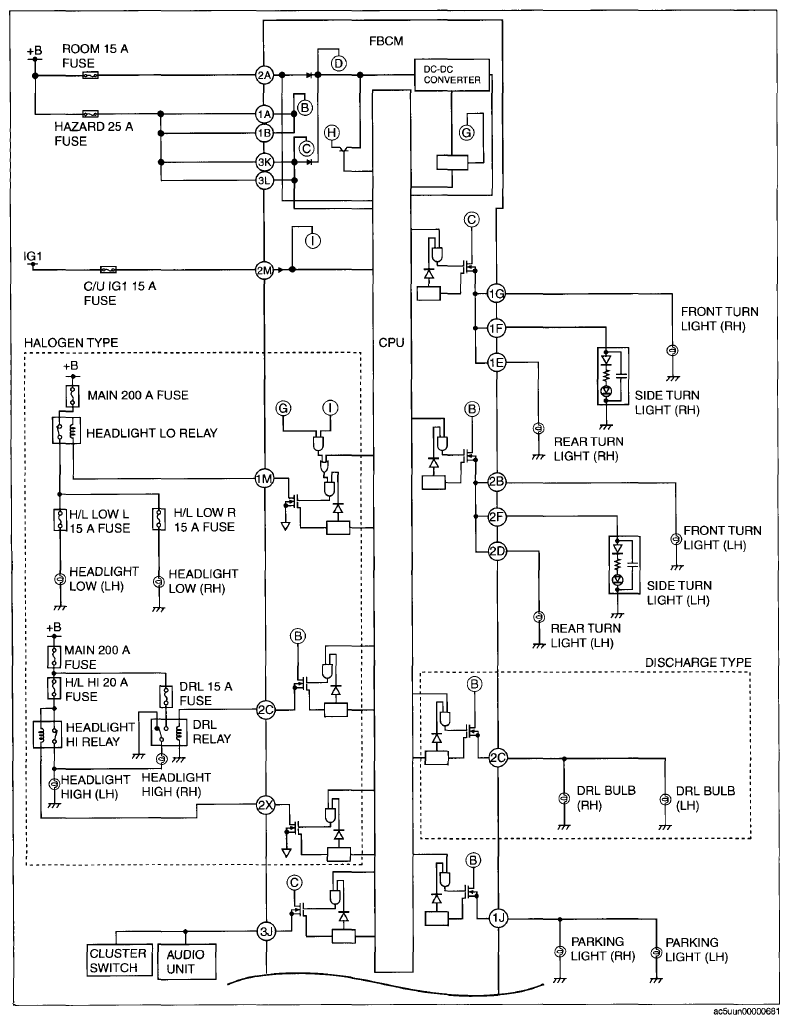

Fig 1: On-Board Diagnostic (FBCM) - Wiring Diagram (1 Of 6)

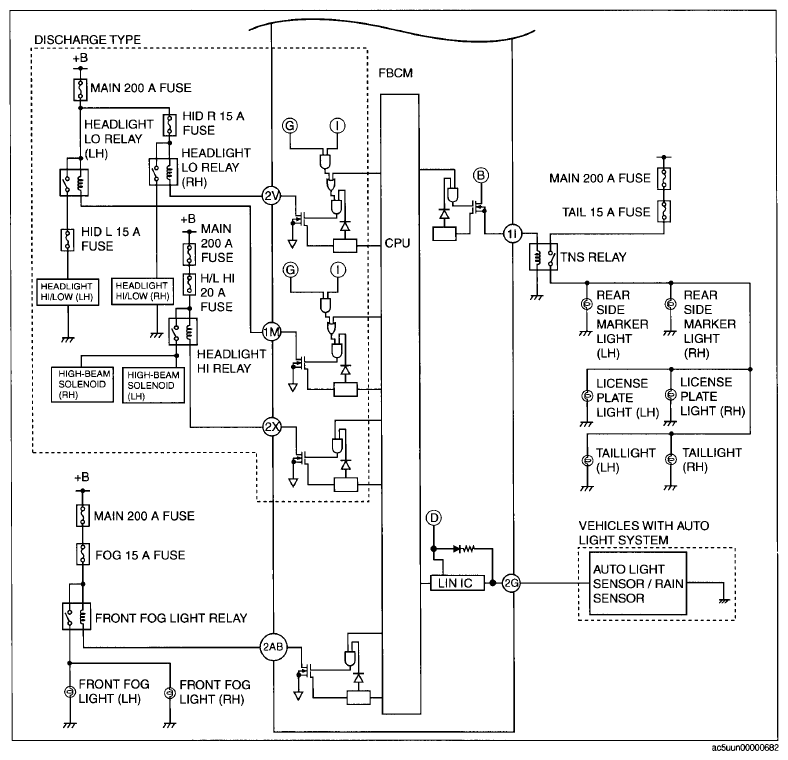

Fig 2: On-Board Diagnostic (FBCM) - Wiring Diagram (2 Of 6)

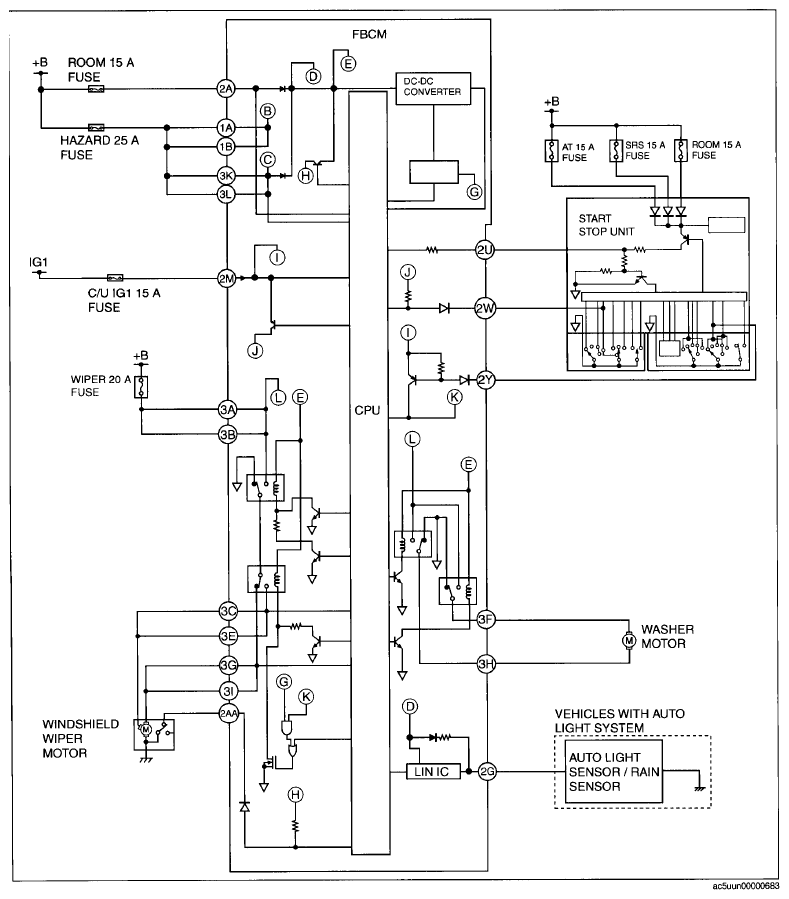

Fig 3: On-Board Diagnostic (FBCM) - Wiring Diagram (3 Of 6)

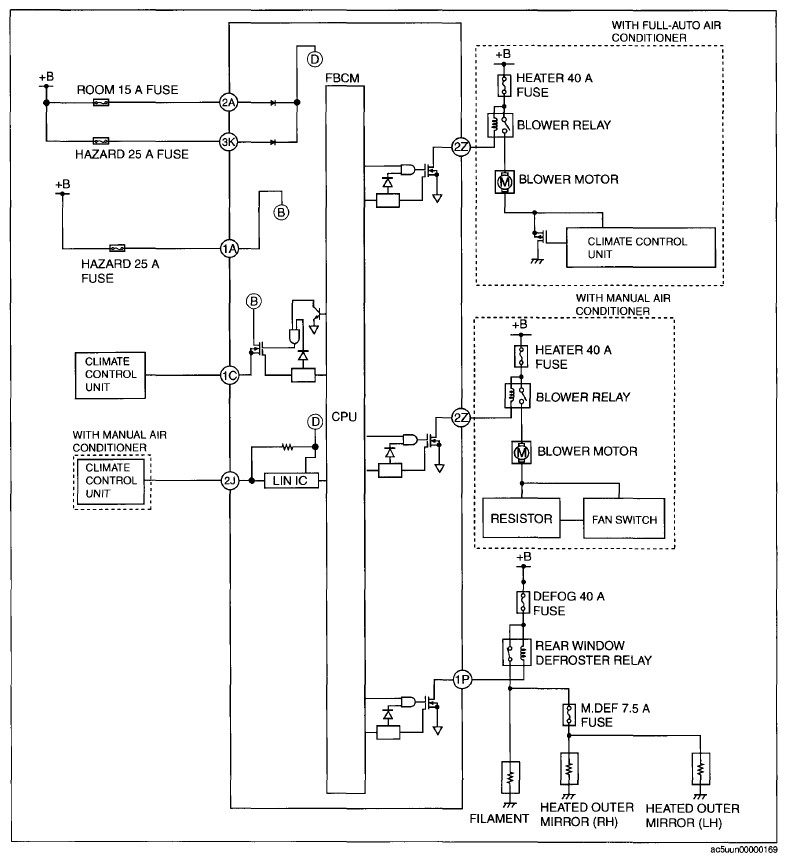

Fig 4: On-Board Diagnostic (FBCM) - Wiring Diagram (4 Of 6)

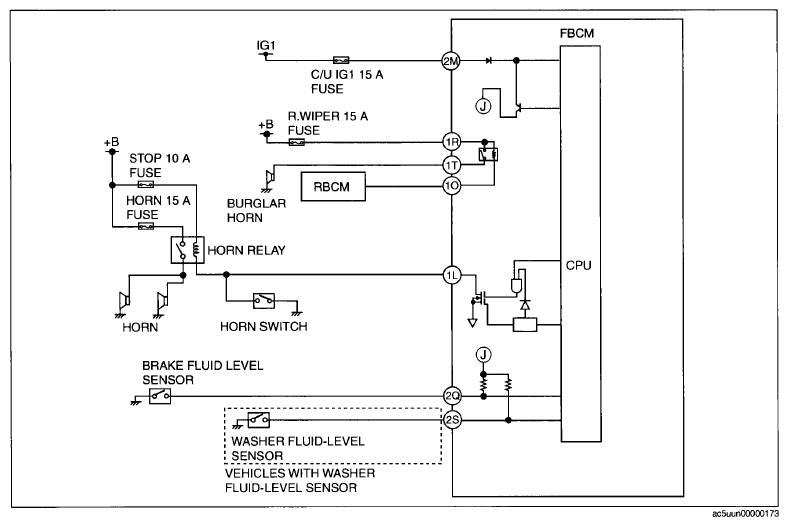

Fig 5: On-Board Diagnostic (FBCM) - Wiring Diagram (5 Of 6)

Fig 6: On-Board Diagnostic (FBCM) - Wiring Diagram (6 Of 6)
