Troubleshooting Procedure

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

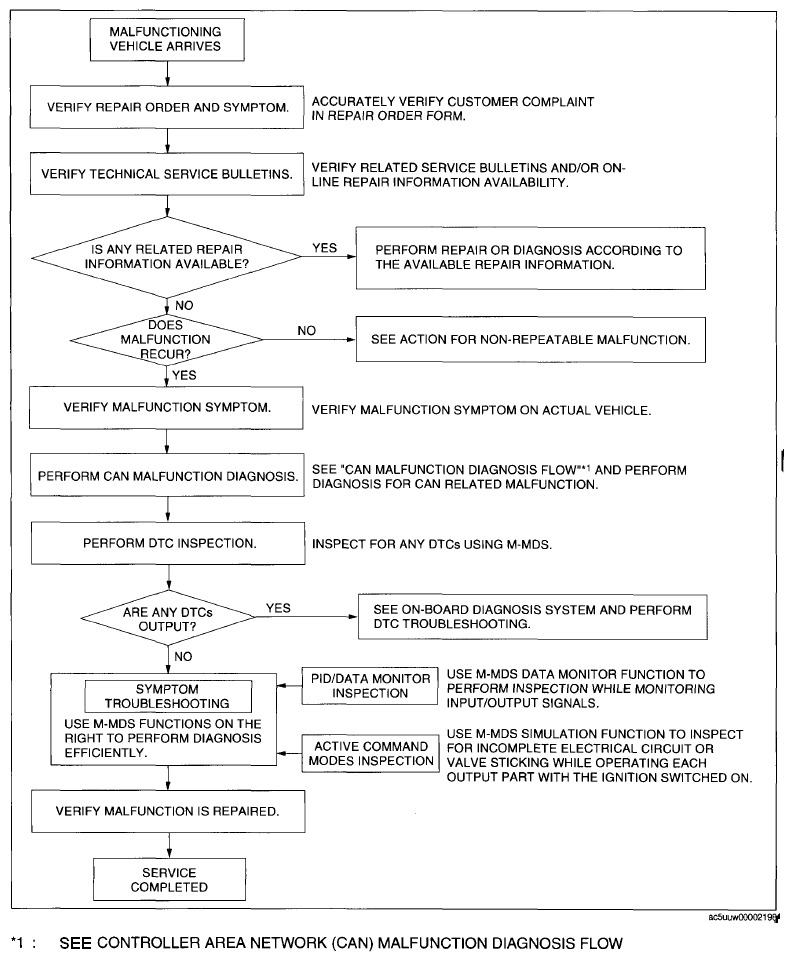

Fig 1: Troubleshooting Procedure Workflow Chart (FBCM)
G09076442
