DTC B13AF-62: Headlight Lo Signal Mismatch: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location  Headlight LO signal mismatch
Detection condition
  • The condition in which the CAN and module signals are compared and no match is detected between the signals for 5 s or more  with the ignition switched ON (engine off or on).
Fail-safe  -
Possible cause
  • Start stop unit malfunction
  • Light switch malfunction
  • Front body control module (FBCM) malfunction
  • Short circuit to ground in wiring harness between start stop unit and front body control module (FBCM)
  • Open circuit in wiring harness between start stop unit and front body control module (FBCM)
  • Short circuit to power supply in wiring harness between start stop unit and front body control module (FBCM)

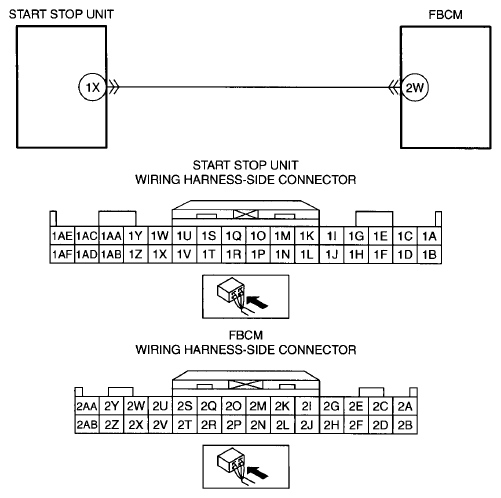

G09076455
